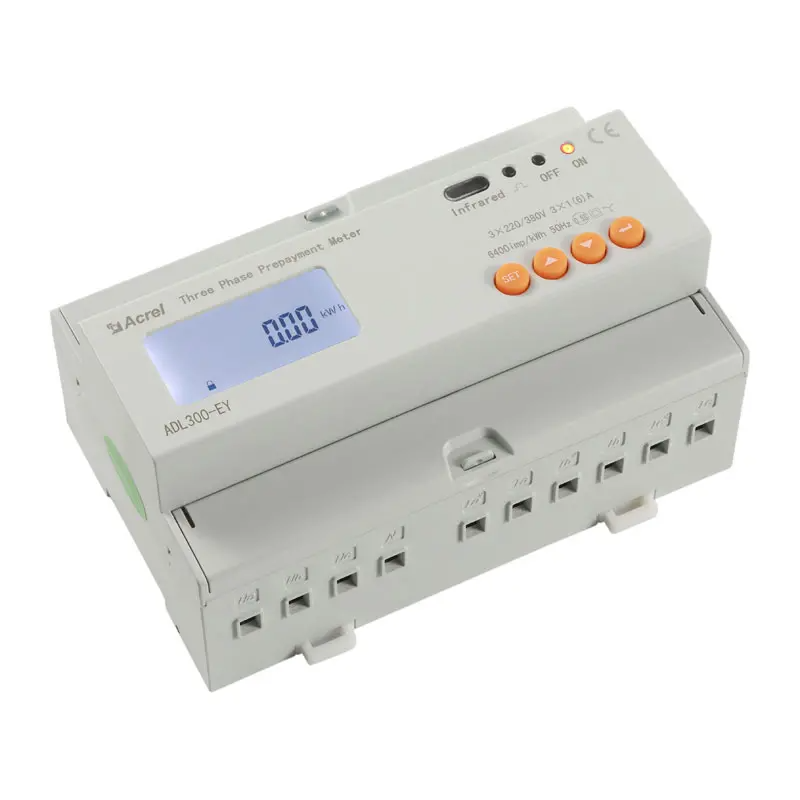

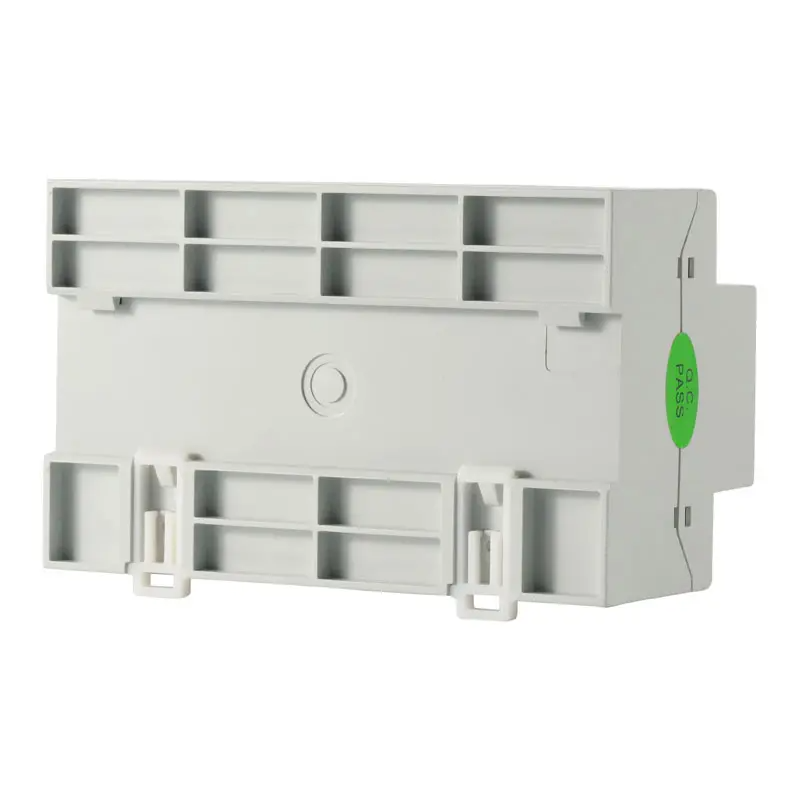

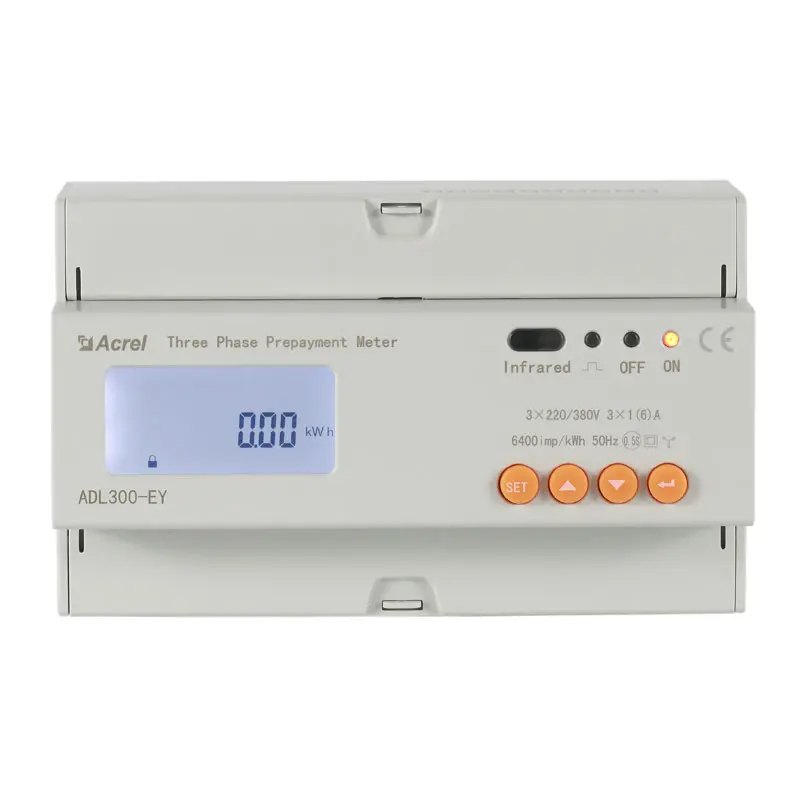

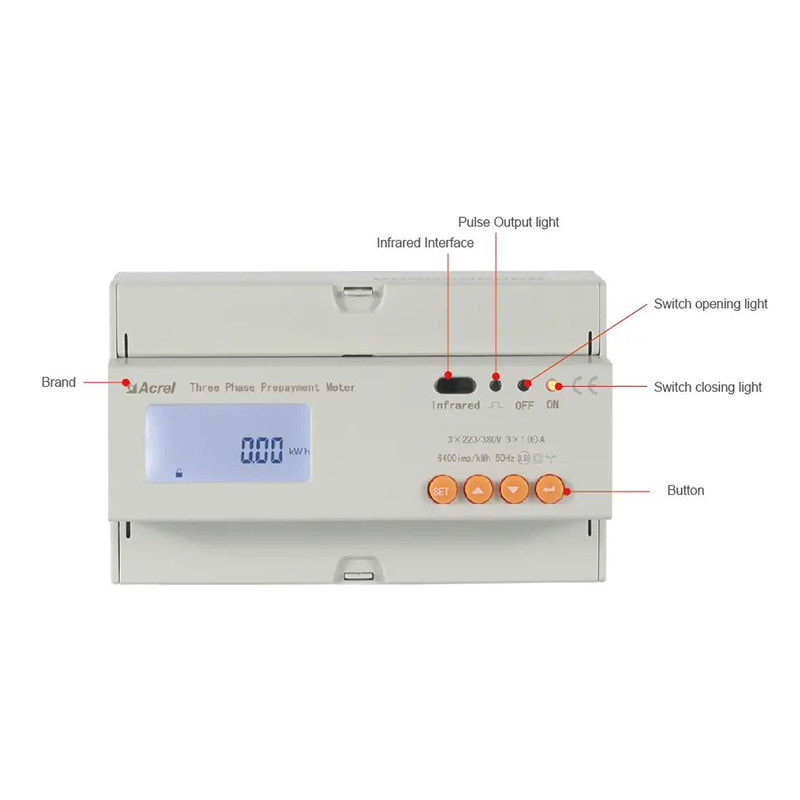

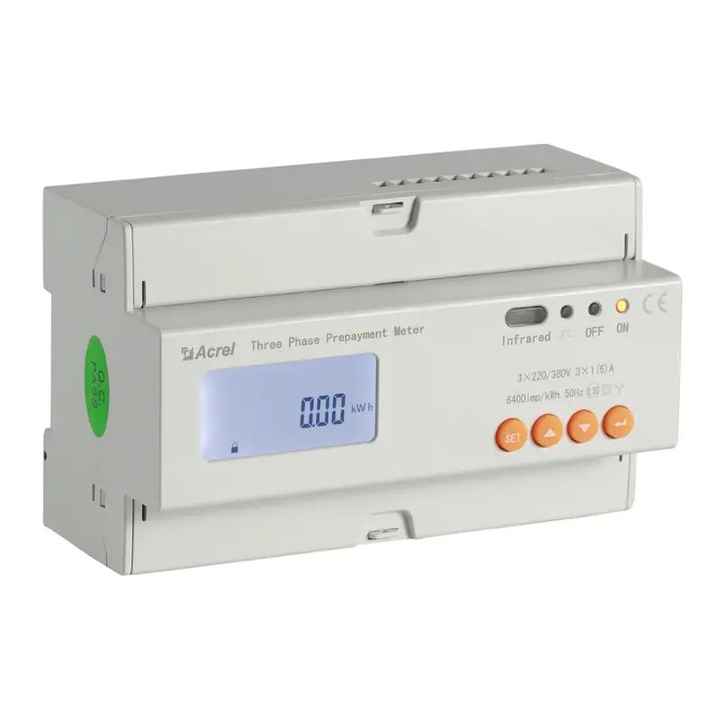

Acrel ADL300-EY Din Rail Smart Wireless 4G MQTT 3 Phase Prepaid Postpaid Power Meter for Apartment Solar Remote on OFF Control
Store rating:4.8
(86 reviews)
Attributes
0.5Accuracy Class
9999 A（AC）Max. Current
0-99999.99Measuring Energy Range
Three PhasePhase
5 ARated Current
Jiangsu, ChinaPlace of Origin
Model Number:ADL300-EY
Brand Name:Acrel
Dimensions:144*70*88mm
Display Type:Digital Only
Operating Temperature:-25℃~+55℃
Output Voltage:3x380~456Vac L-L
Rated voltage:3x380~456Vac L-L
Frequency:45~65Hz
Communication:RS485 (MODBUS-RTU); Infrared
Display:8 bits section LCD display
Installtion:35mm DIN Rail
Accuracy:Class 0.5s
Optional Function:4 tariff rates (spike, peak, valley, flat); 14 time intervals by day
Measurement:Total active kWh (bidirectional --positive and negative in total)
Control:Remote Control
Key attributes
Accuracy Class
0.5
Max. Current
9999 A（AC）
Measuring Energy Range
0-99999.99
Phase
Three Phase
Rated Current
5 A
Place of Origin
Jiangsu, China
Model Number
ADL300-EY
Brand Name
Acrel
Dimensions
144*70*88mm
Display Type
Digital Only
Operating Temperature
-25℃~+55℃
Output Voltage
3x380~456Vac L-L
Rated voltage
3x380~456Vac L-L
Rated Current
3x10(80)A AC (via direct connect); 3x1(6)A AC (via CTs)
Frequency
45~65Hz
Communication
RS485 (MODBUS-RTU); Infrared
Display
8 bits section LCD display
Installtion
35mm DIN Rail
Accuracy
Class 0.5s
Optional Function
4 tariff rates (spike, peak, valley, flat); 14 time intervals by day
Measurement
Total active kWh (bidirectional --positive and negative in total)
Control
Remote Control
