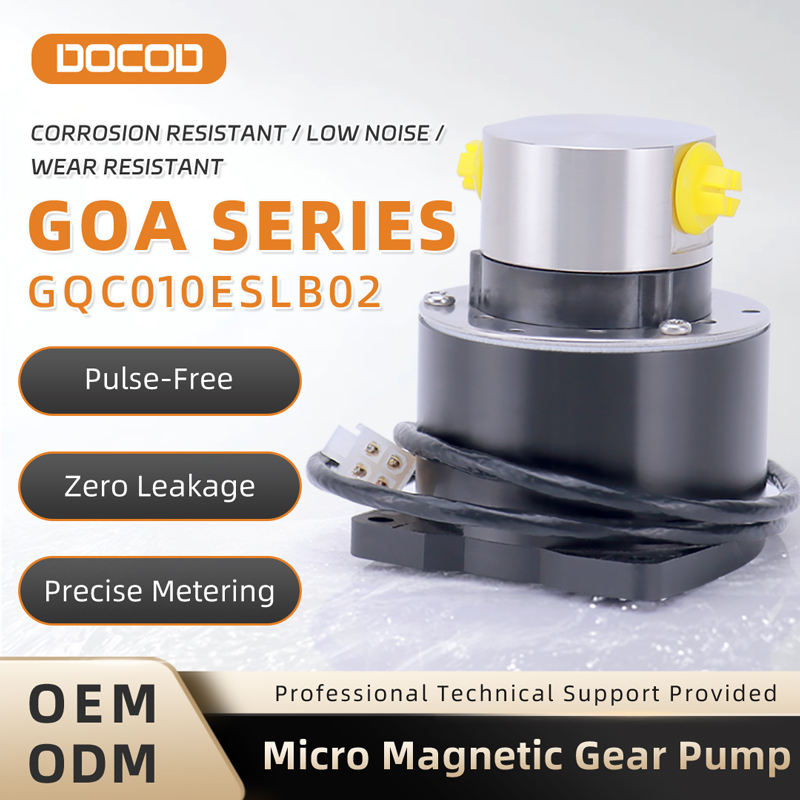

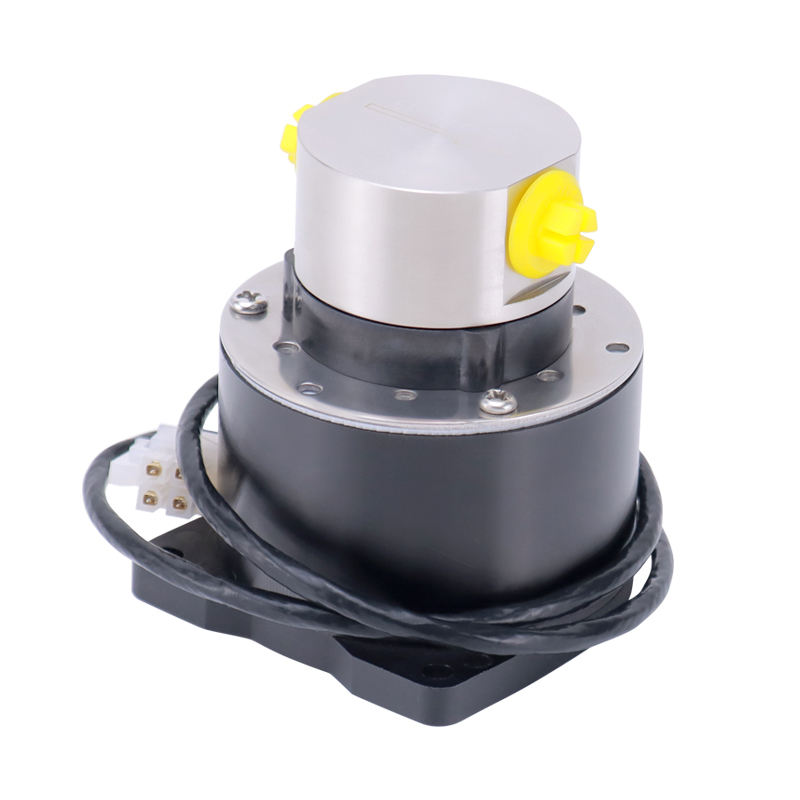

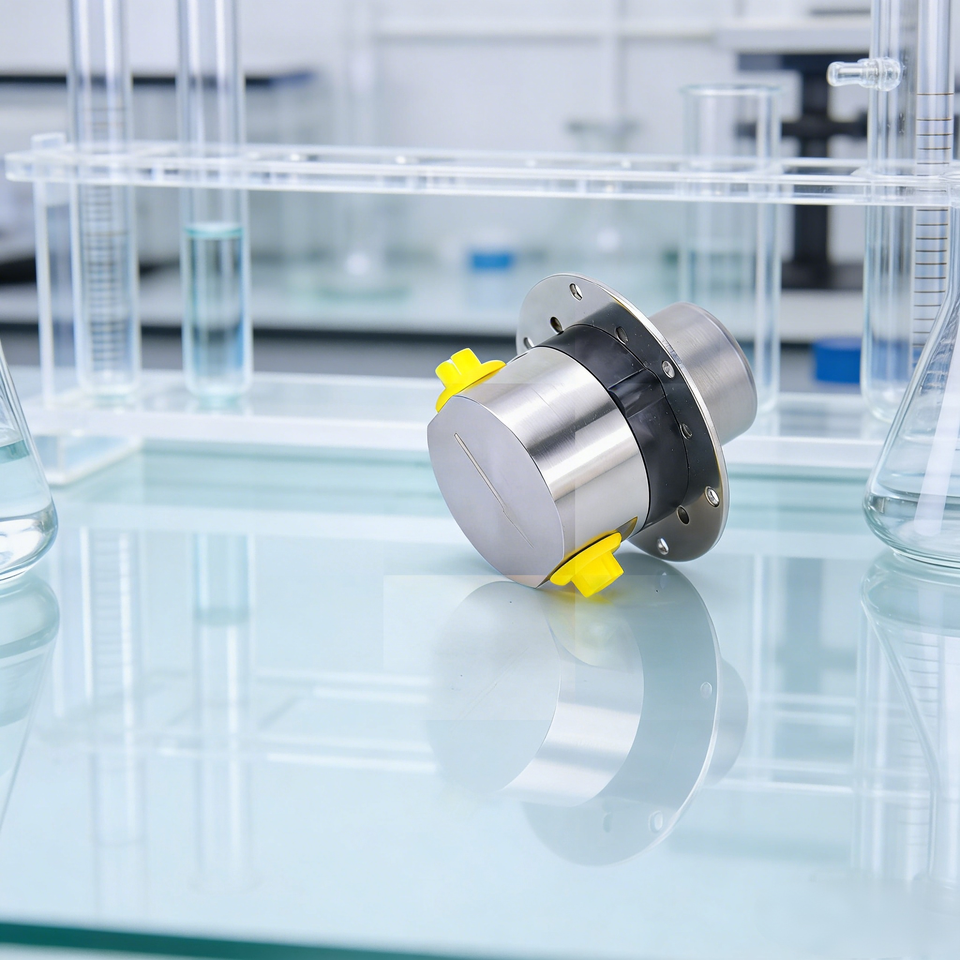

Accurate Metering Cost-Effective Micro Gear Pump Pulseless High Pressure Micro Gear Pump For Methanol To Hydrogen Equipment
No reviews yet
Attributes
Automotive Industryapplication
ink pumpstructure
480mL/minMax Flow Rate
1.6MPaMax Pressure
Electricpower source
Alcohol, Diesel, Gasoline, Kerosene, oils, WaterChemical Compatibility
Applicable temperature:-40 to 105 degrees Celsius
Material:Stainless Steel
motor:Servo Motor, Brushless DC Motor, Stepper Motor
warranty:1 Year
customized support:OEM, ODM, OBM
pressure:1.6MPa
model number:GQC010ESLB02
place of origin:Guangdong, China
brand name:DOCOD

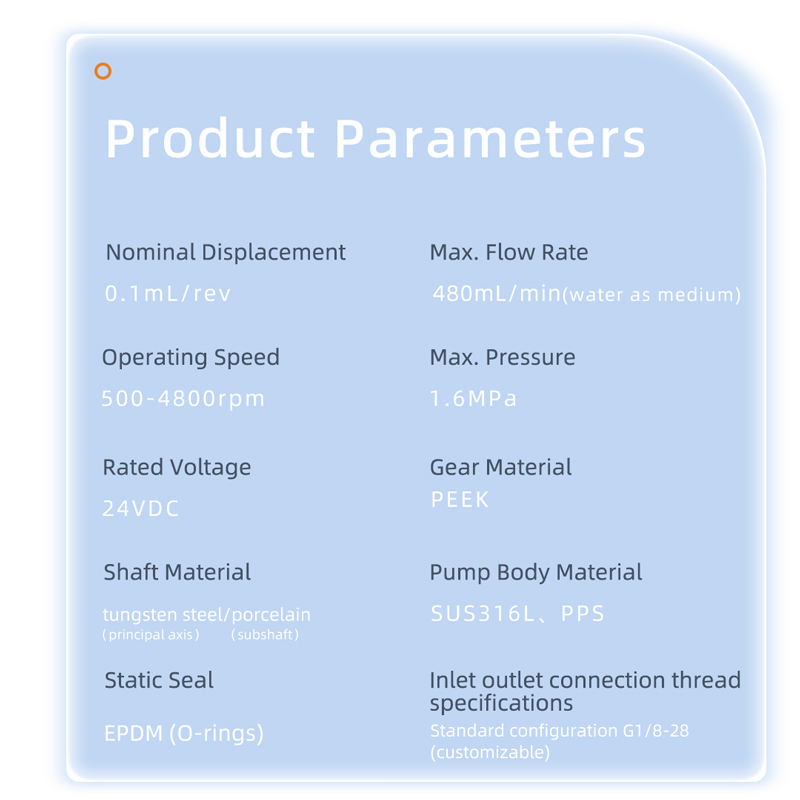

Nominal Displacement:0.1mL/rev
Max. Flow Rate:480mL/min(water as medium)
Max. Pressure:1.6MPa
Viscosity Range:0.5-1500CP
Operating Speeds:500-4800rpm
Rated Voltage:24VDC
Rated Power:20W
Gear Material:PEEK
Pump Body Material:SUS316L
Static Seal:EPDM (O-rings)

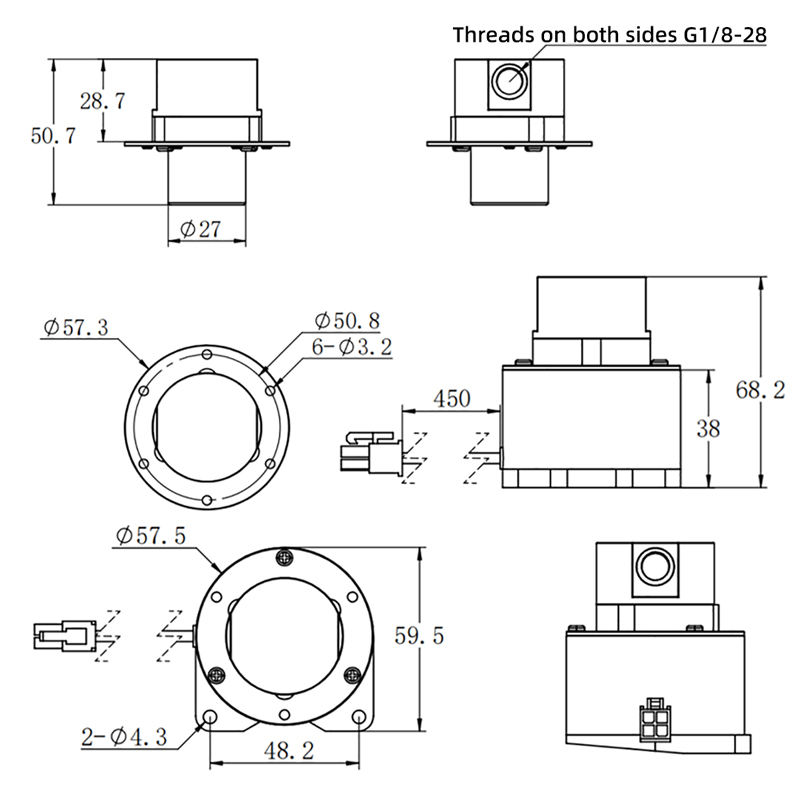

thread specifications:Standard configuration G1/8-28(customizable)
Compatible Drive:Brushless DC Motor, Stepper Motor, Servo Motor
Temperature resistance:-40 to 105 degrees Celsius
Shaft Material:Tungsten steel (principal axis), Porcelain(subshaft)
Key attributes
application
Automotive Industry
structure
ink pump
Max Flow Rate
480mL/min(16.23fl oz/min)
Max Pressure
1.6MPa(232.06psi)
power source
Electric
Chemical Compatibility
Alcohol, Diesel, Gasoline, Kerosene, oils, Water
Applicable temperature
-40 to 105 degrees Celsius
Material
Stainless Steel
motor
Servo Motor, Brushless DC Motor, Stepper Motor
warranty
1 Year
customized support
OEM, ODM, OBM
pressure
1.6MPa(232.06psi)
model number
GQC010ESLB02
place of origin
Guangdong, China
brand name
DOCOD
Nominal Displacement
0.1mL/rev
Max. Flow Rate
480mL/min(water as medium)
Max. Pressure
1.6MPa
Viscosity Range
0.5-1500CP
Operating Speeds
500-4800rpm
Rated Voltage
24VDC
Rated Power
20W
Gear Material
PEEK
Pump Body Material
SUS316L
Static Seal
EPDM (O-rings)
thread specifications
Standard configuration G1/8-28(customizable)
Compatible Drive
Brushless DC Motor, Stepper Motor, Servo Motor
Temperature resistance
-40 to 105 degrees Celsius
Shaft Material
Tungsten steel (principal axis), Porcelain(subshaft)
