Attributes
OriginalBrand Name
98-0066Model Number
Surface MountMounting Type
NewManufacturing Date Code
ChinaPlace of Origin
Component & PartProduct Completion Type

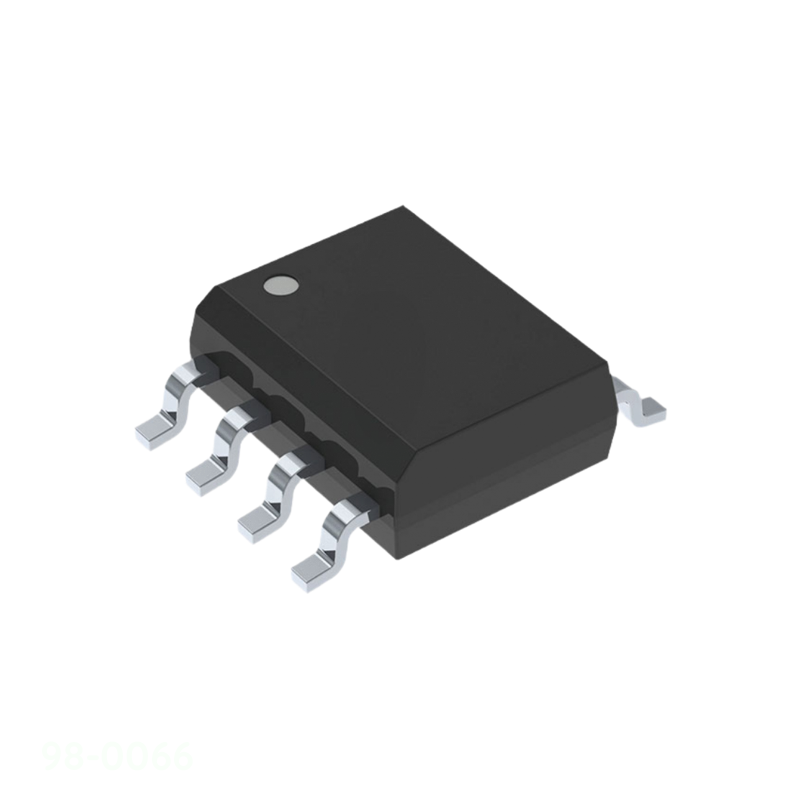

Description:IC GATE DRVR HI/LOW SIDE 8SOIC
Application:Gate Drivers
Series:Power Management (PMIC)
Features:Kit Electronic Components
Output Voltage:12V ~ 20V
Output Type:Standard
Package:Tube
Driven Configuration:High Side or Low Side
Channel Type:Single
Number of Drivers:1
Gate Type:IGBT, N Channel MOSFET
Logic Voltage VIL, VIH:0.8V, 3V
Current Peak Output (Source, Sink):250mA, 500mA
Input Type:Non Inverting
High Side Voltage Max (Bootstrap):600 V
Rise / Fall Time (Typ):80ns, 40ns
