Attributes
380/220Vvoltage
FANUCcnc control system
Heavy Dutymachining capacity
3number of axes
Single, Twin, 4, 6, 8no. of spindles
12, 8, 10, 6, 4tool post stations
type:Horizontal
max. length of workpiece (mm):460
max. weight of workpiece(kg):300
travel (x axis)(mm):220 mm
travel (z axis)(mm):500 mm
positioning accuracy (mm):±0.003
repeatability (x/y/z) (mm):±0.003
place of origin:Jiangsu, China
warranty:1 Year
dimension(l*w*h):2.00*1.65*1.78M
brand name:Telford
model number:FCL-280
weight:3100
key selling points:Multifunctional, Automatic, Competitive Price, High Safety Level, High-Accuracy, Energy Saving, Eco-Friendly, High Productivity, Long Service Life, Other, Easy To Operate, Flexible Manufacturing, High Rigidity, Low Maintenance Cost, Digital, Remote Monitoring, IOT
machinery test report:Provided
video outgoing-inspection:Provided
range of spindle speed:0 - 4500 r.p.m
cutting torque:300 N.m
controller:customized
CNC or Not:CNC Lathe Machine

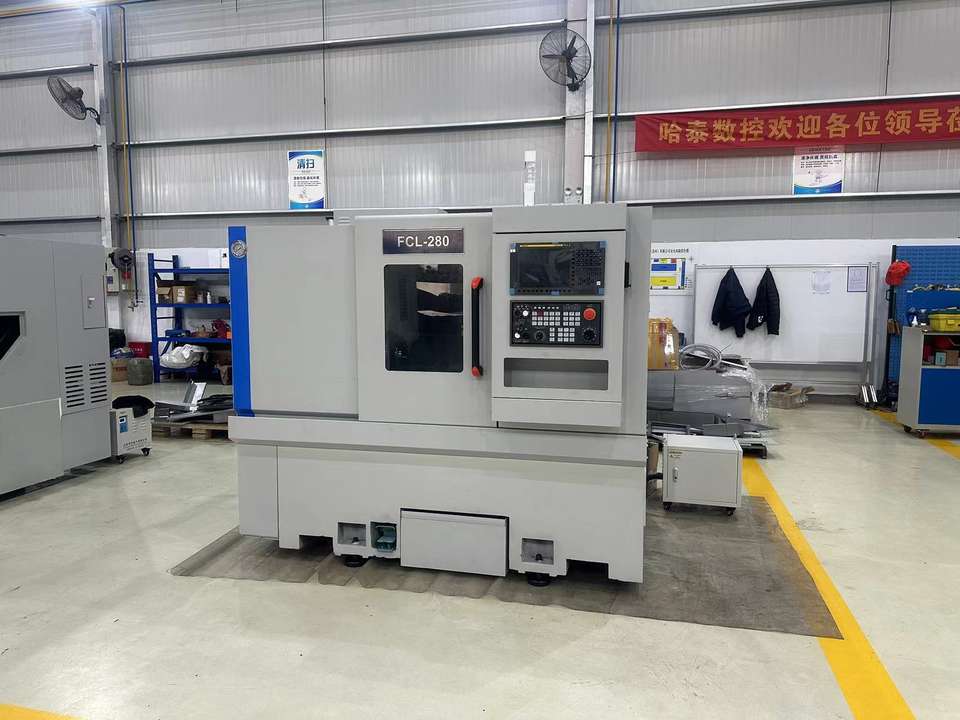

Product name:Telford FCL-280
Chuck:10" hydraulic chuck or customized
Spindle head type:A2-6 or customized
Top center drive mode:Hydraulic
Z axis rapid movement:30m/min
X axis rapid movement:30m/min
Quill travel:80
Quill diameter:70
