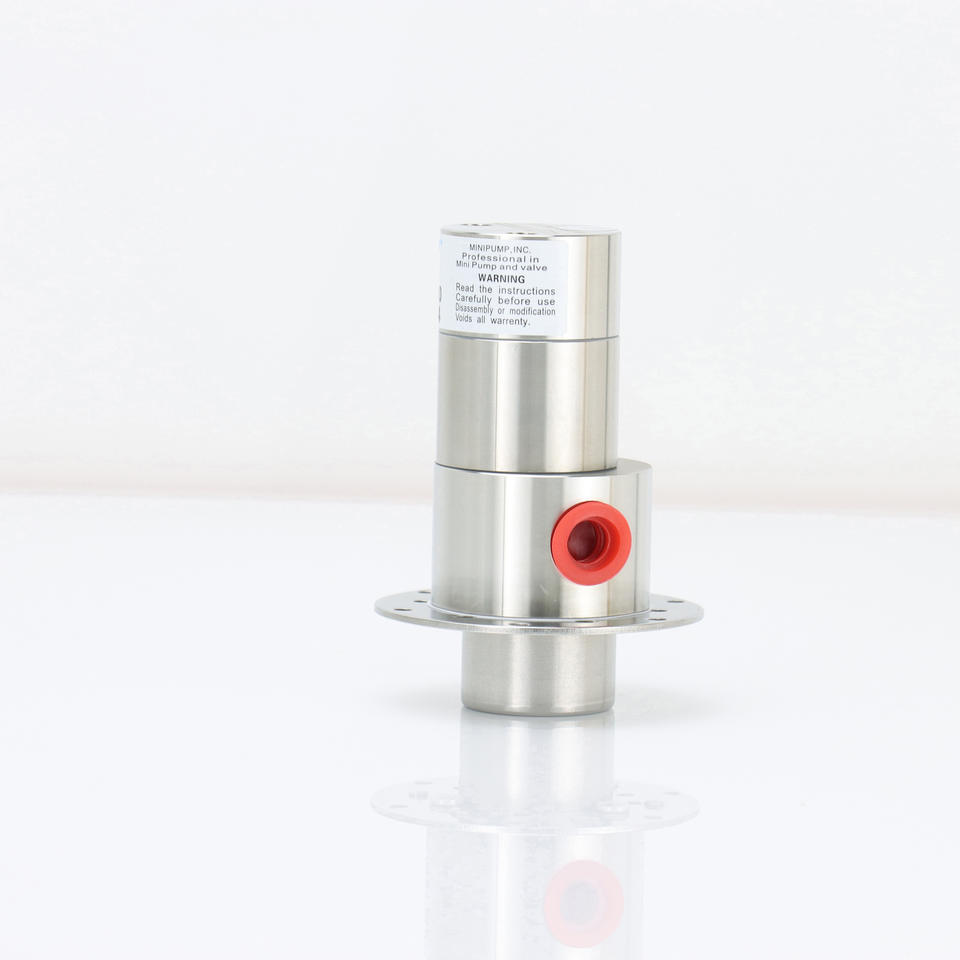

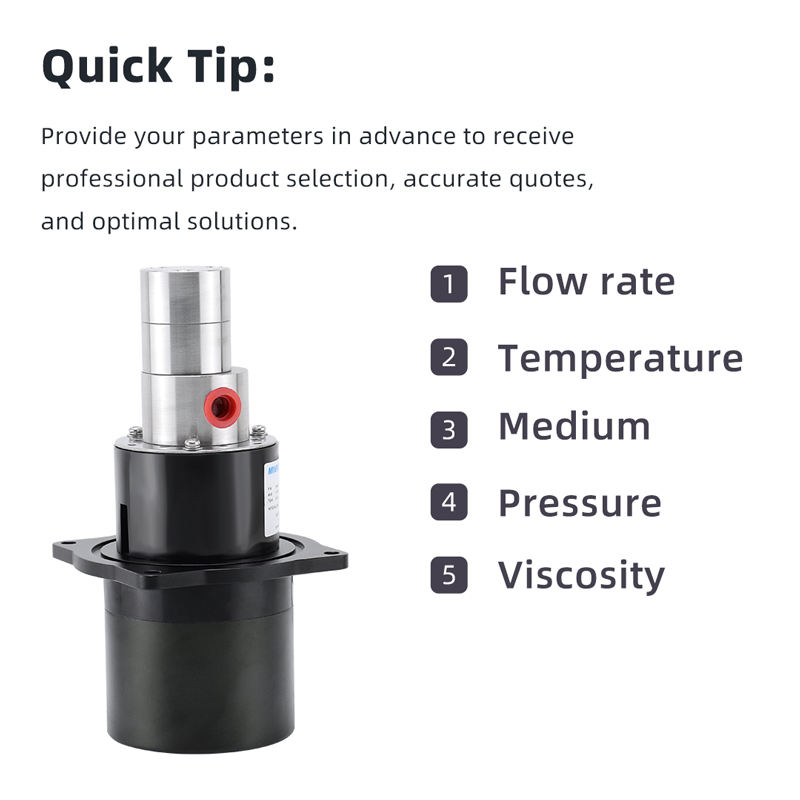

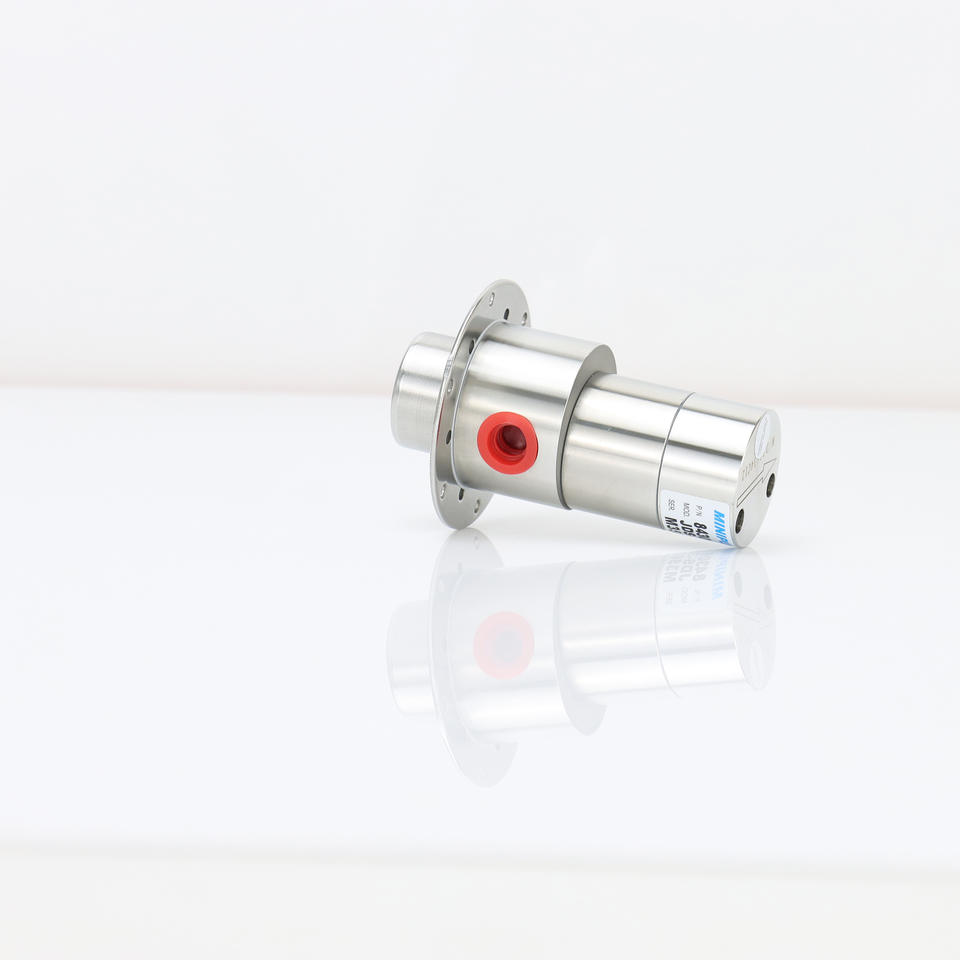

6L/Min Stainless Steel 24V DC Electric Micro Small Oil Transfer Gear Pump Brushless Gear Metering Pump Head

No reviews yet

$161.08

1-99 pieces

$128.86

100-499 pieces

$107.38

≥500 pieces

Flow Rate

Maximum Head

Type

Customization options

motor (Min. order: 1 piece)

Key attributes

Application

Other

Pressure

0.25Mpa

Customized Support

OEM, ODM, OBM

Place of Origin

China

Power Source

Electric

Warranty

1 Year

Shipping

Select shipping

Alibaba.com order protection

Secure payments

Every payment you make on Alibaba.com is secured with strict SSL encryption and PCI DSS data protection protocols

Money-back protection

Claim a refund if your order doesn't ship, is missing, or arrives with product issues

Only orders placed and paid through Alibaba.com can enjoy free protection by

Payment & financing

Buy now, pay later

Key attributes

Application

Other

Pressure

0.25Mpa

Customized Support

OEM, ODM, OBM

Place of Origin

China

Power Source

Electric

Warranty

1 Year

Model Number

GQA125ESLD01

Applicable temperature

-40 to 105 degrees Celsius

Chemical Compatibility

Alcohol

Displacement

0.32mL/rev

Max Flow Rate

6L/min(water as medium)

Max Pressure

0.25MPa

motor

Servo Motor, Stepper Motor, Brushless DC Motor

Sealing Material

Ceramic

Structure

ink pump

Material

Stainless Steel

Operating Speeds

500-4500rpm

Rated Voltage

24VDC

Rated Power

70W

Gear Material

PEEK

Pump Body Material

SUS316L

Static Seal

PTFE (gaskets), EPDM (O-rings)

thread specifications

Standard configuration NPT1/4-18(customizable)

Compatible Drive

Brushless DC, Stepper, Servo

Max. Flow Rate

6L/min(water as medium)

Max. Pressure

0.25MPa

Viscosity Range

0.5-1500CP

Shaft Material

Stainless steel

Temperature resistance

-40 to 105 degrees Celsius
