Attributes
1200x2000table size
2100table travel (x) (mm)
1400table travel (y) (mm)
Singleno. of spindles
15weight (t)
800table travel (z) (mm)
repeatability (x/y/z) (mm):±0.012
max. table load(kg):5000
min. time of tool change(s):2
place of origin:Jiangsu, China
spindle taper:BT50
type:Gantry
dimension(l*w*h):6300*3800*4700
cnc control system:GSK
positioning accuracy:±0.016
range of spindle speed:1 - 8000 r.p.m
tool magazine capacity:24
key selling points:High-Accuracy
warranty:1 Year
brand name:Minnuo
voltage:customizable
machinery test report:Provided
video outgoing-inspection:Provided
machining capacity:Heavy Duty
rapid feed speed:1 - 8000 mm/min

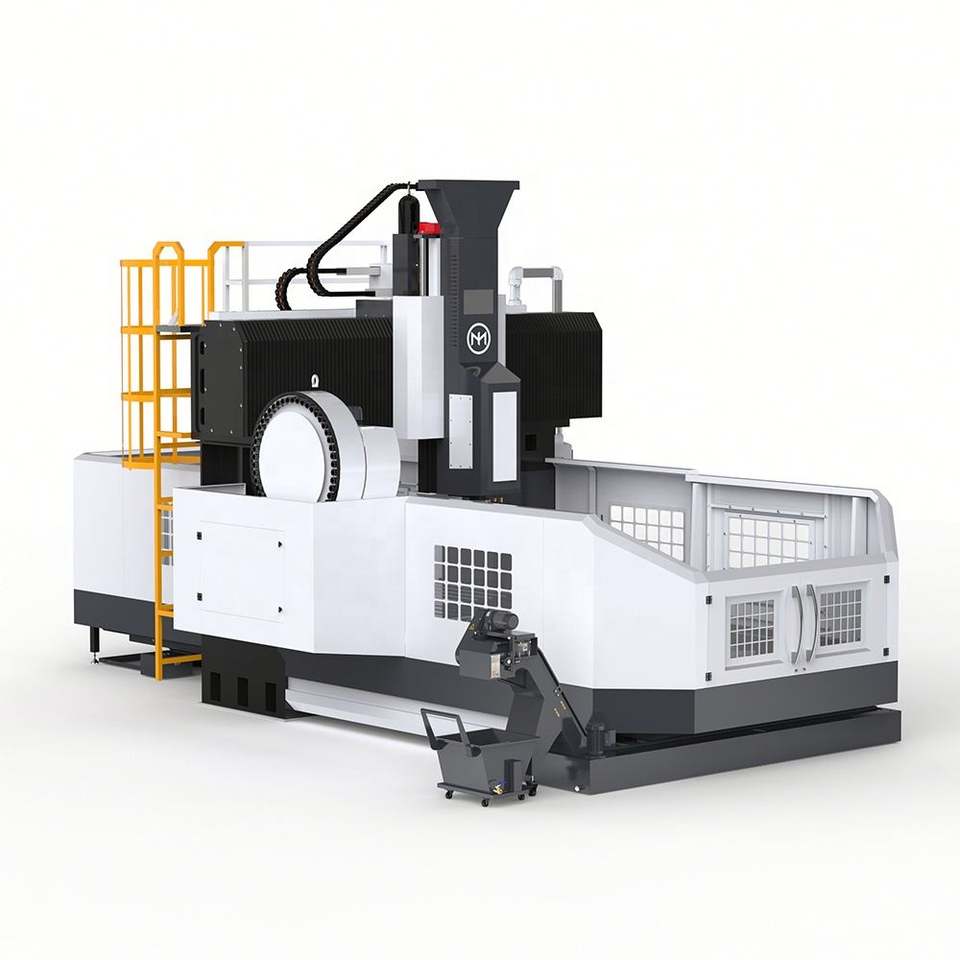

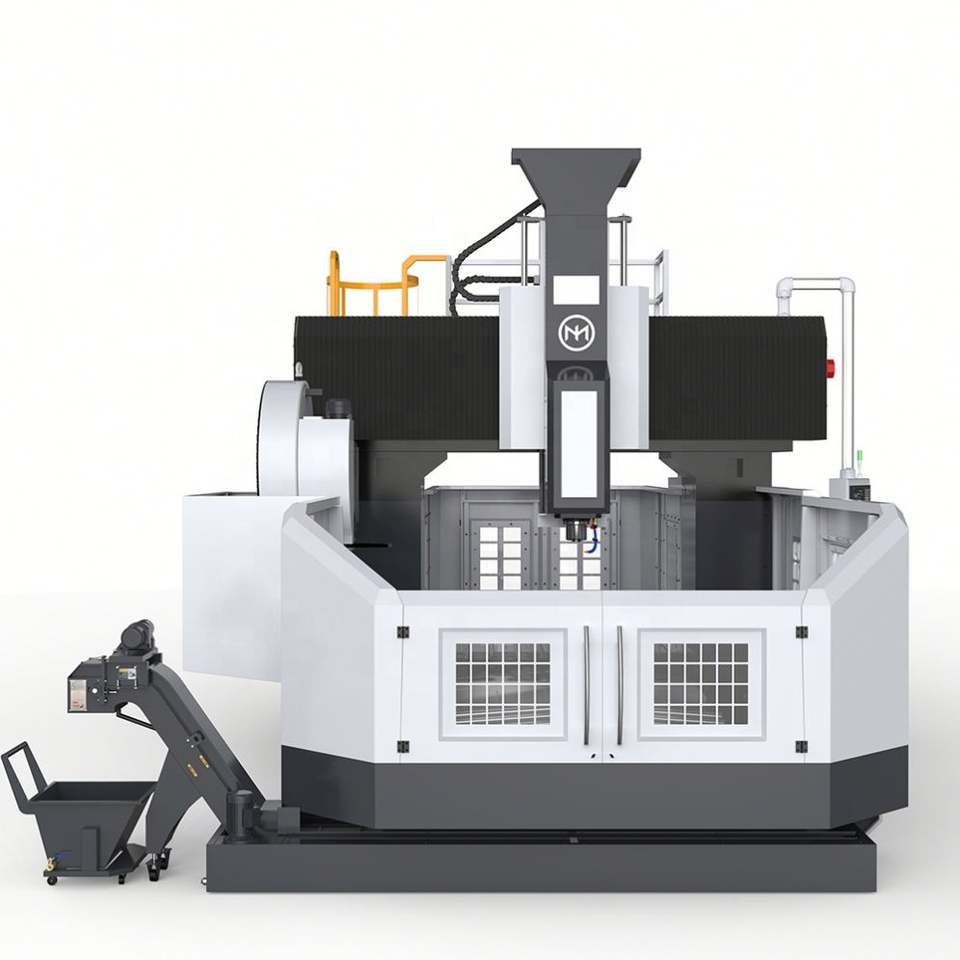

Product name:5 Axis Gantry Type Machining Center for Complex Parts
CNC or Not:CNC Systemn
Controlling Mode:Fanuc Mitsubishi Siemens Gsk System
Spindle Speed:8000rpm
Tool Changer:ATC 24 Tools Changer
T Slot:22X140X7mm
Power(W):15/18.5KW
Guideways:Taiwan Hiwin Linear Guideways
Surface Treatment:High Temperature Quenching
Color:Customer's Requirement
Selling Units:Single item
