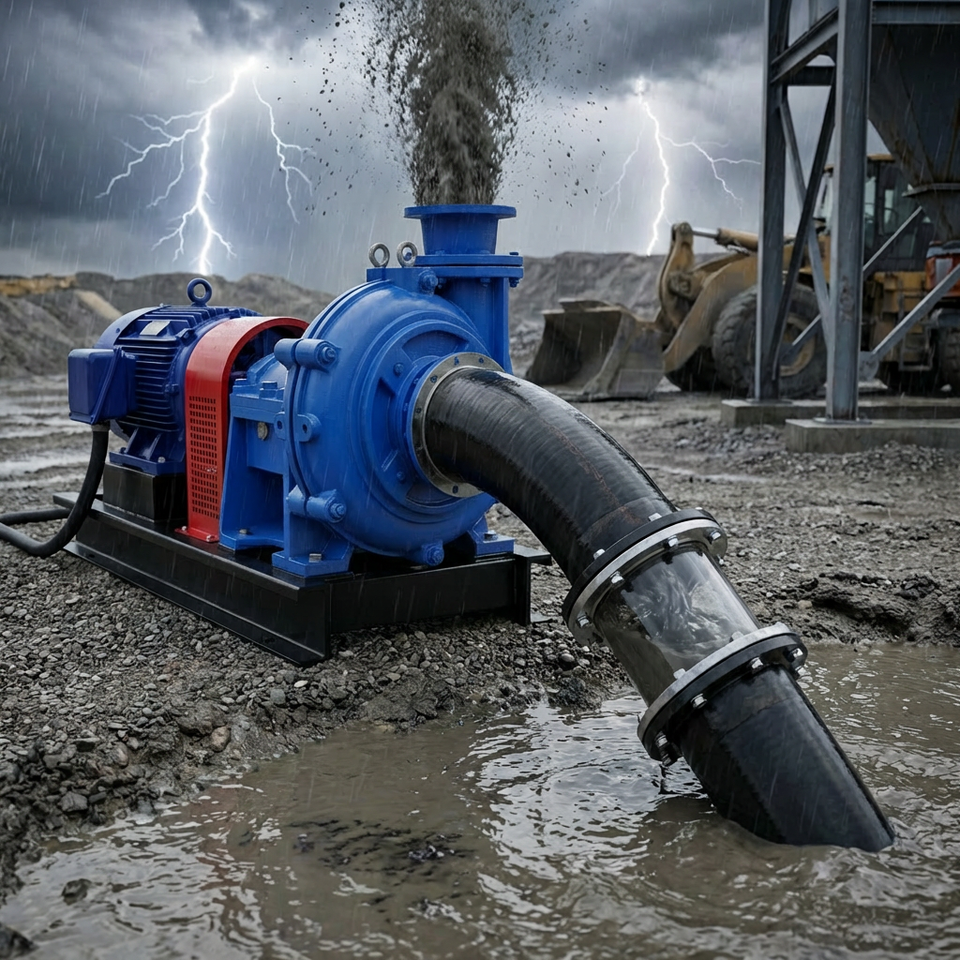

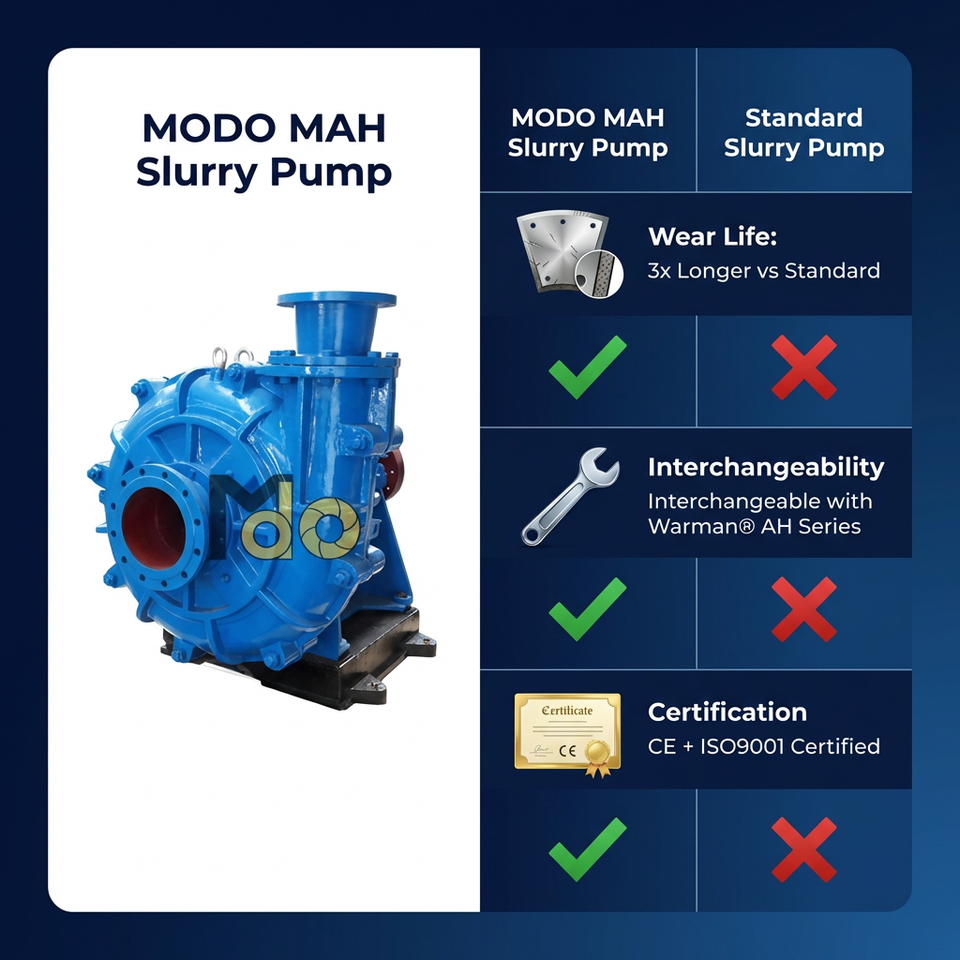

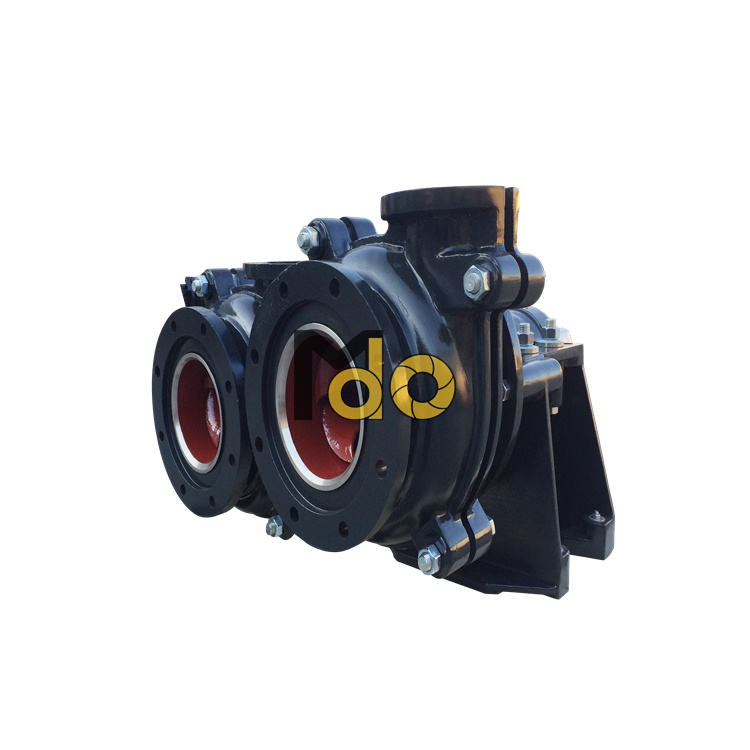

4 Inch Sand Pump for Mining Centrifugal Slurry 3*2 -MAH,4*3C-MAH,6*4D-MAH,8*6 -MAH,10*8ST-MAH,etc 3*2 -MAH 4*3C-MAH 6*4D-MAH 8*6

No reviews yet
$498.75
Minimum order quantity: 1 set
Select now

Flow Rate

Up to 3000m³/hr
Minimum 15m³/hr
As customer request

maximum head

120m(393.70ft)
As customer request

type

Centrifugal Pumps
Slurry pump
Metal slurry pump
Mine dewatering pump

+ 1 more variants

Customization options
cable length (Min. order: 1 set)

Key attributes

application

Mining Industry, Coal factory, etc

pressure

High Pressure, customizable

customized support

OEM, ODM, Customized Solutions According to Parameters

place of origin

Hebei, China

power source

Electric motor, Diesel engine

warranty

1 year

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Key attributes

application
Mining Industry, Coal factory, etc
pressure
High Pressure, customizable
customized support
OEM, ODM, Customized Solutions According to Parameters
place of origin
Hebei, China
power source
Electric motor, Diesel engine
warranty
1 year
model number
3*2 -MAH,4*3C-MAH,6*4D-MAH,8*6 -MAH,10*8ST-MAH,etc
brand name
MODO
Applicable temperature
0~70c
cable length
Om, 5m, 8m, 10 meters, 20m, 30m, 80m, etc.
Chemical Compatibility
Good compatibility with neutral and weak
Connection Type
Coupling, Belt Drive, Gearbox Drive, flange
Control Method
Control Cabinet
Discharge Pipe Size
1~14"
Displacement
4-5500m³/h(141.26-194230.67ft3/h)
Dwell time
N/A
Filter material
N/A
Flow Meter Specification
Not included, optional accessory
Hardness
≤ Mohs 7
horsepower
10hp-800hp/As customer request
Impeller Material
27% chrome white iron, rubber, Ceramic
Import Size
1" ~ 14"
Inlet Height
200mm-800mm, As per model
Max Flow Rate
4-5500m³/h(141.26-194230.67ft3/h)
Max Pressure
10-25 bar(145.04-362.59psi)
Membrane material
N/A
motor
Explosion-Proof Motor, Inverter Motor, Three phase asynchronous motor, As customer request
outlet size
1inch-18inch/As customer request
Outlet Type
Flanged
Outlet Water Oil Content
N/A
Sealing Material
Ceramic, Carbon, NBR
structure
Centrifugal Pump, single-stage
suction head
3-6m(9.84-19.69ft)
Surface Treatment
Anti-corrosive painting
Material
27% chrome white iron, Cast iron, A05, Cr27, Stainless steel, Cast iron, customized
