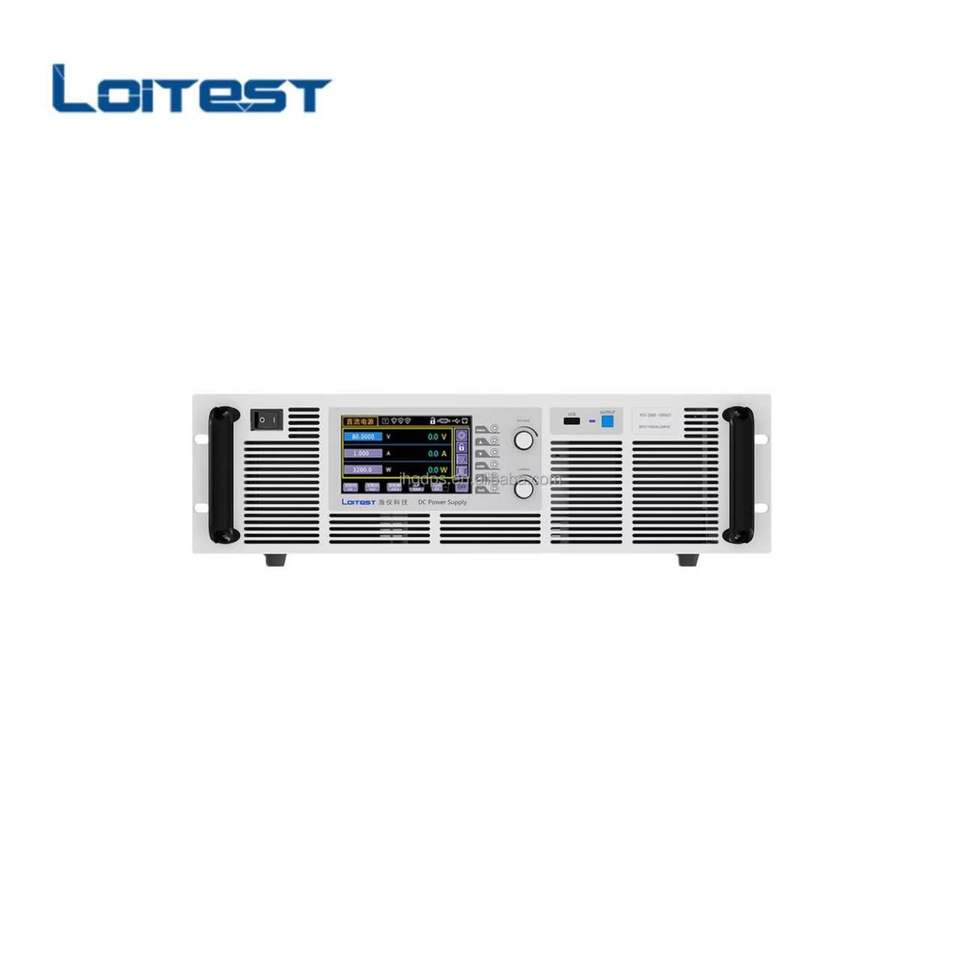

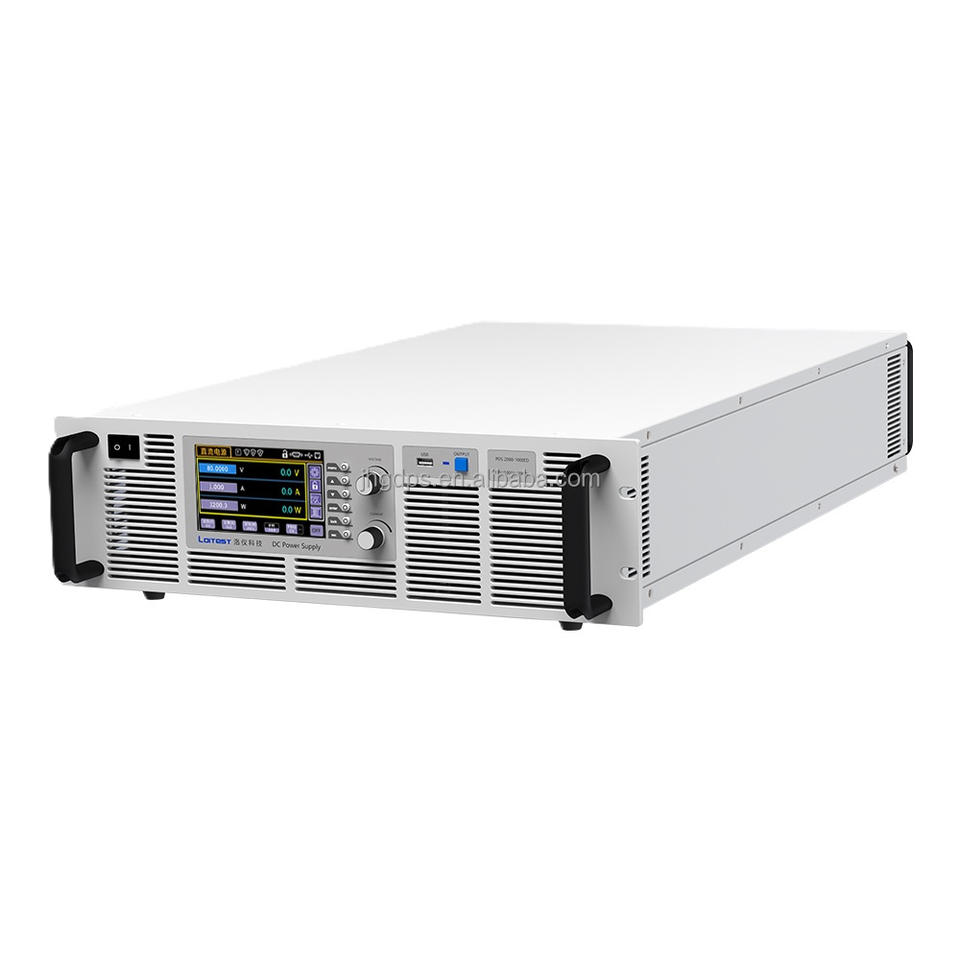

3U High Power Programmable Supply Wide Voltage Output Stability Source Support SCPI Command

No reviews yet
$7,020
Minimum order quantity: 1 unit
Select now

Output Power

30KW

Key attributes

Input Voltage

340~480Vac/3ph, Optional 200~480Vac/3ph, 45-65Hz

Output Current

0~50A

Output Voltage

0~1600V

Place of Origin

Jiangsu, China

Application

Battery Test, EV Component Test, Aging Test, DC/DC Test

Brand Name

Loitest

Shipping

Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.

Key attributes

Input Voltage
340~480Vac/3ph, Optional 200~480Vac/3ph, 45-65Hz
Output Current
0~50A
Output Voltage
0~1600V
Place of Origin
Jiangsu, China
Application
Battery Test, EV Component Test, Aging Test, DC/DC Test
Brand Name
Loitest
Efficiency
Up to 93% High Efficiency

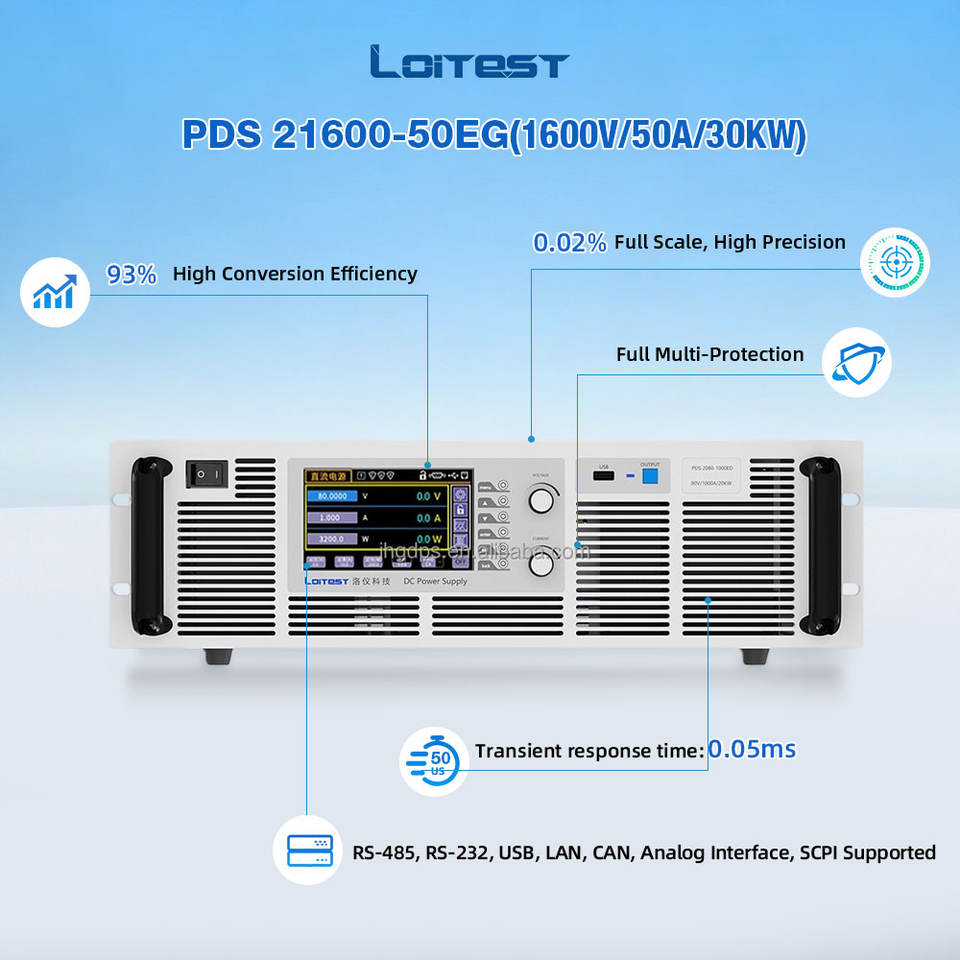

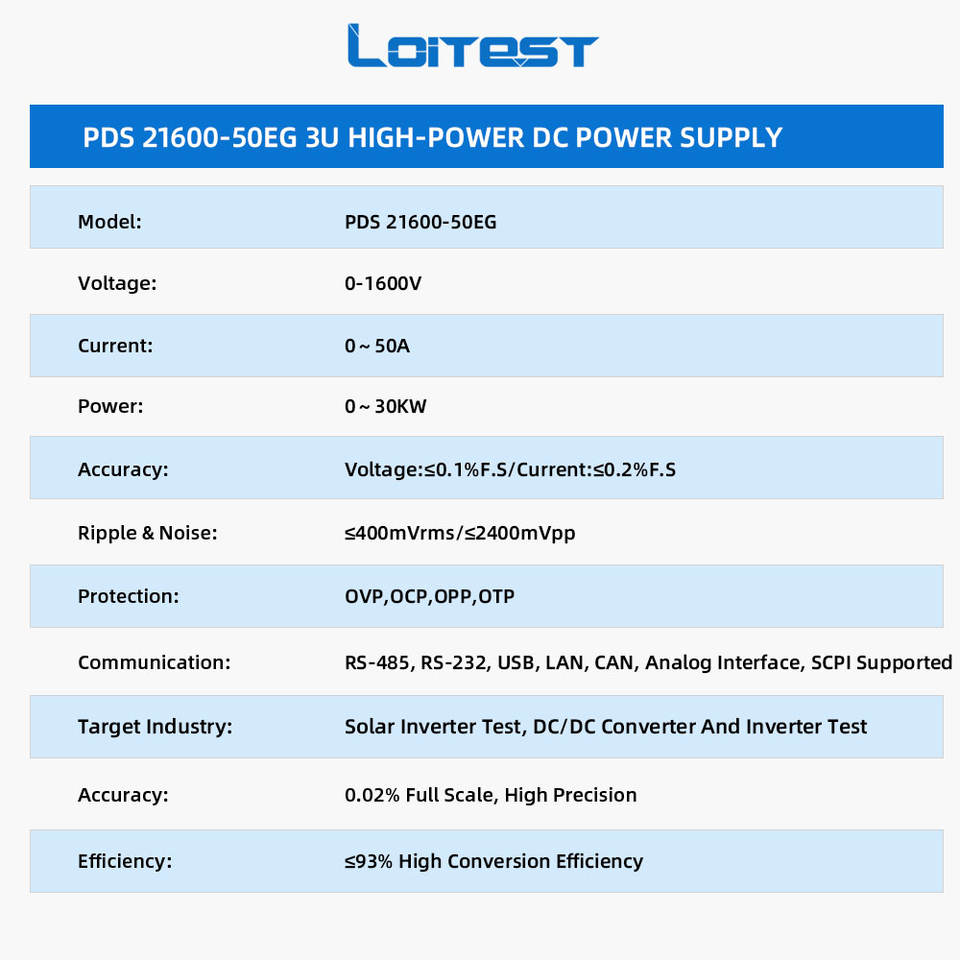

Model Number
PDS 21600-50EG
Output Type
Auto Range Adjustable Regulated DC Output
Protection
Over Temperature Protection, Overcurrent Protection, Overvoltage Protection, Over Power Protection
Type

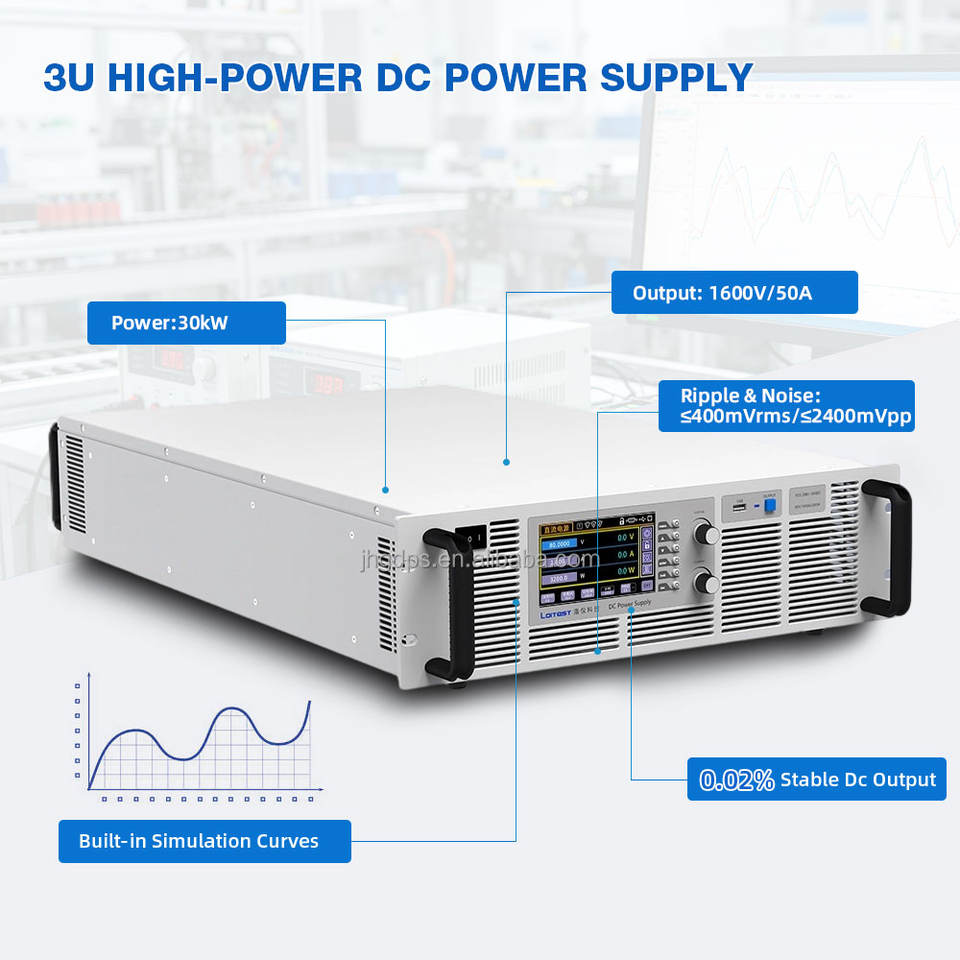

3U Rack Mount High Power Programmable DC Power Sup
Form Factor

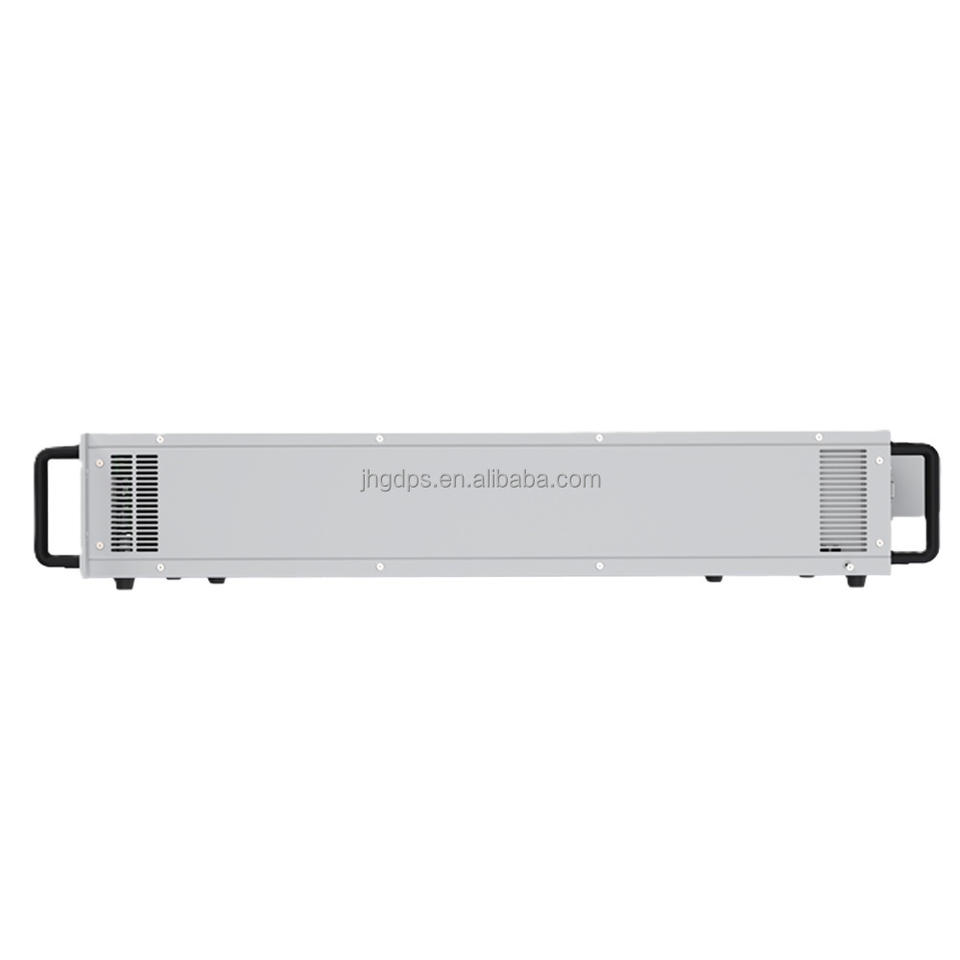

3U Standard Rack Mount (482*133*735mm)
Rated Power
30000W High Power Density
Output Range
0-1600V 0-50A Auto Range Output
Power Efficiency
Up to 93% High Conversion Efficiency
Input Compatibility
340-480Vac Three-Phase Wide Input
Cooling System
Smart Temp-Control Fan Cooling
Control Interface
RS485/RS232/USB/LAN/CAN/Analog, SCPI
Operation Function
Master-Slave Parallel & Panel Programming
Working Environment
0-45c Operating, -20c-70c Storage
Protection Function
OVP/OCP/OPP/OTP Full Protection
