Attributes
High PowerContact Load
3.0Max. switching current
Guangdong, ChinaPlace of Origin
3350-1275/4275Model Number
COMUSBrand Name
AC/DCPower Source
Protect Feature:Sealed
Theory:Reed Relay
application:Auto control system

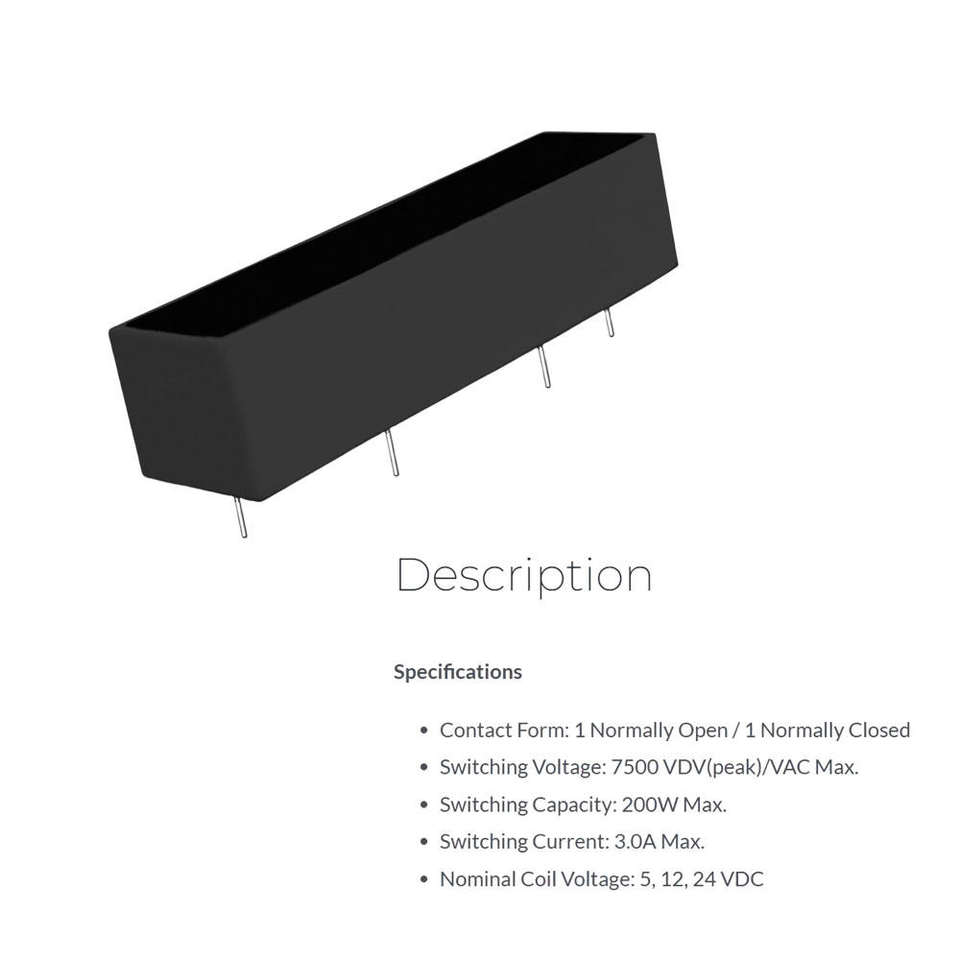

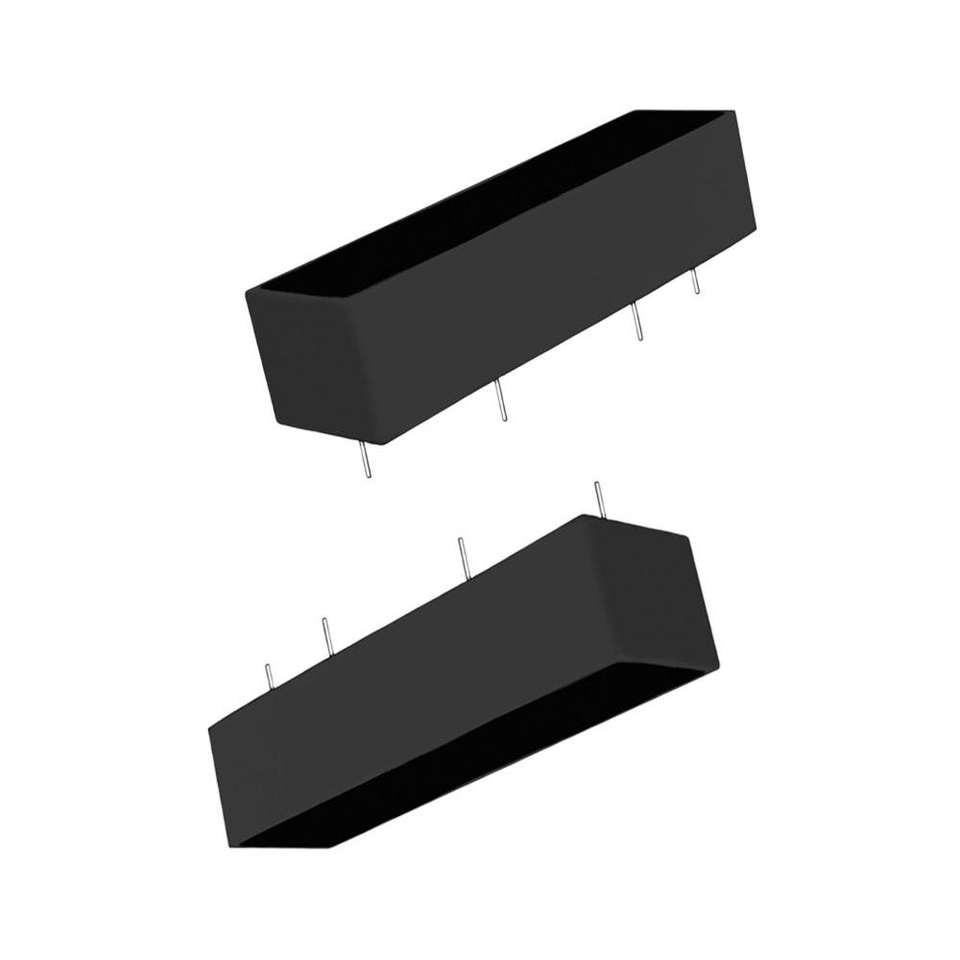

Product name:high voltage reed relay
Switching Power:200w
Breakdown voltage:7.5kvdc
Switching Voltage:3.5kv
Switching Current:3A
Initial contact resistance:150 mOhm
Nominal Voltage:5VDC/12VDC//24 VDC
Release Time:0.5ms
Coil Resistance:180/580 Ohm
Keyword:HV Reed Relay
Selling Units:Single item
Single package size:22X9X8 cm
Single gross weight:0.100 kg
