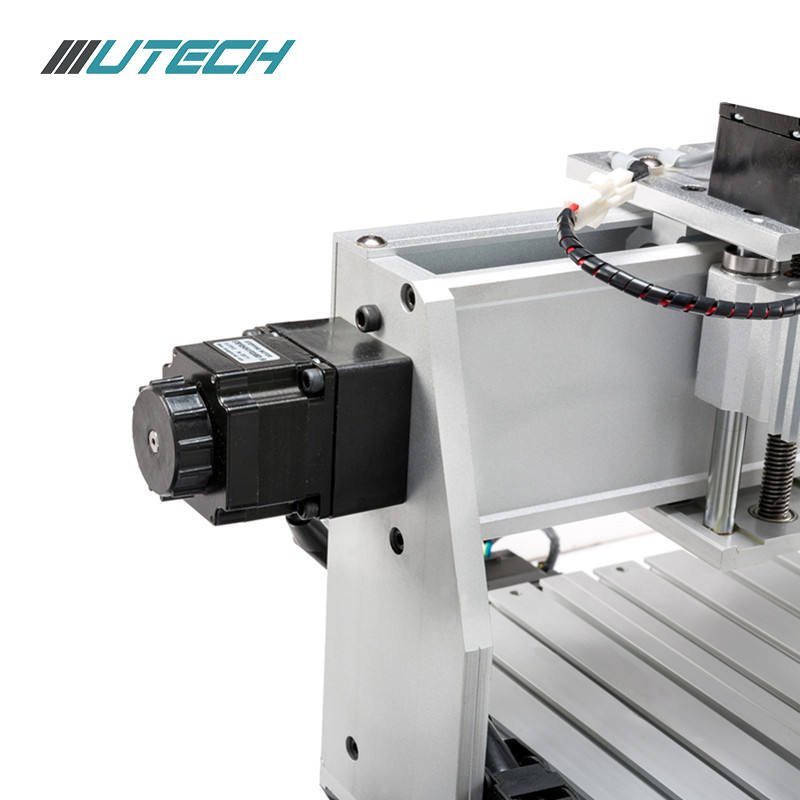

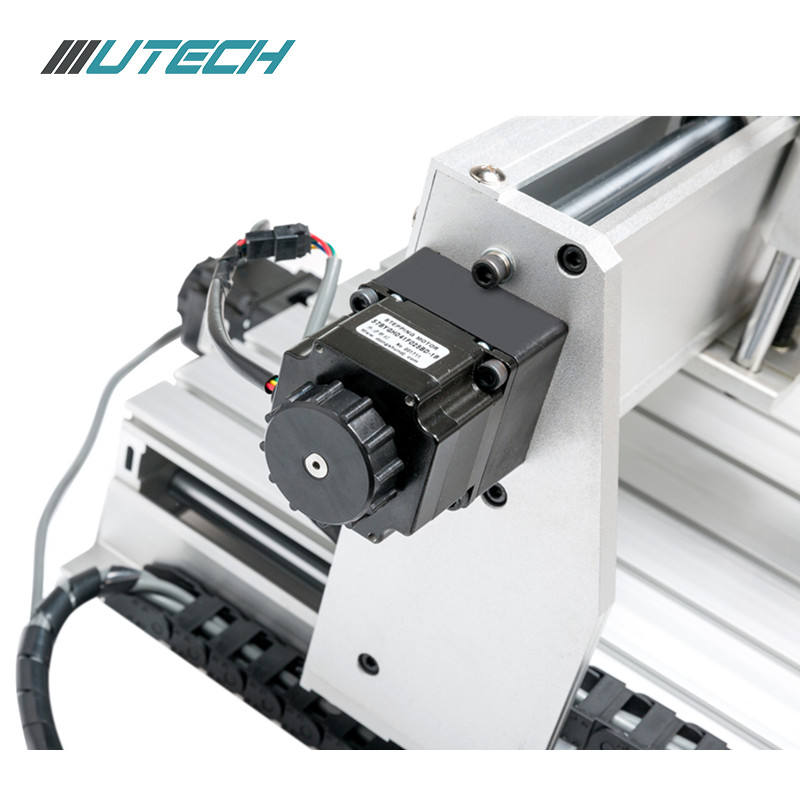

3040 CNC Router Milling Machine Mechanical Frame Kit Ball Screw with DC Spindle Motor
Store rating:5.0
(33 reviews)
Attributes
300x400mmWorking Table Size(mm)
3number of axes
220V/380Vvoltage
CNC Routermachine type
SingleNo. of Spindles
Easy To Operatekey selling points
cnc or not:CNC
place of origin:China
Power (kW):3
weight (kg):30
warranty:1 Year
positioning accuracy (mm):0.1 mm
travel (x axis)(mm):300 mm
travel (y axis)(mm):400 mm
repeatability (x/y/z) (mm):0.1 mm
brand name:UTECH
dimension(l*w*h):630*510*420mm
machinery test report:Provided
video outgoing-inspection:Provided
core components:Bearing, Other
Working area:300*400mm
Spindle motor:800w Water Cooled
Controller:Mach 3
Machinable material thickness:≤70mm
Frame material:Aluminium alloy
PositionaI accuracy:0.05mm
Instruction code:G code/.nc/.ncc/.tab/.txt
Holder:ER11(3.175mm, 6mm)
Drive motor:Stepper motor and driver
support system:Windows XP / Win 7
Key attributes
Working Table Size(mm)
300x400mm
number of axes
3
voltage
220V/380V
machine type
CNC Router
No. of Spindles
Single
key selling points
Easy To Operate
core components
Bearing, Other
warranty
1 Year
cnc or not
CNC
video outgoing-inspection
Provided
machinery test report
Provided
place of origin
China
Power (kW)
3
weight (kg)
30
positioning accuracy (mm)
0.1 mm
travel (x axis)(mm)
300 mm
travel (y axis)(mm)
400 mm
repeatability (x/y/z) (mm)
0.1 mm
brand name
UTECH
dimension(l*w*h)
630*510*420mm
Working area
300*400mm
Spindle motor
800w Water Cooled
Controller
Mach 3
Machinable material thickness
≤70mm
Frame material
Aluminium alloy
PositionaI accuracy
0.05mm
Instruction code
G code/.nc/.ncc/.tab/.txt
Holder
ER11(3.175mm, 6mm)
Drive motor
Stepper motor and driver
support system
Windows XP / Win 7
Packaging and delivery
Packaging Details
Carton packing for 3040 CNC router milling machine mechanical frame kit ball screw with DC spindle motor
Selling Units
Single item
Single package size
63X51X42 cm
Single gross weight
40.000 kg

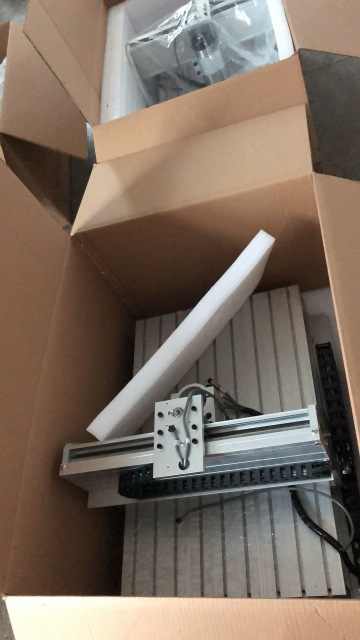

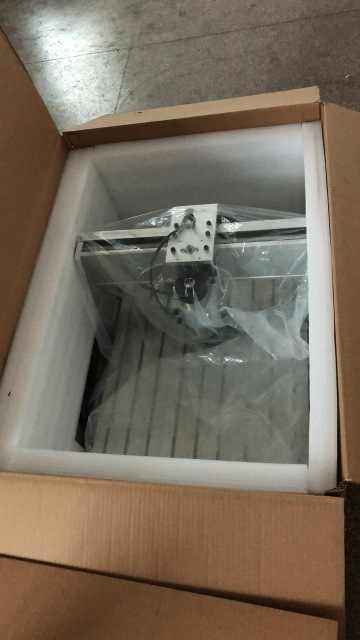

Packaging examples
Lead time
Customization options
Customized logo (Min. order: 1 set)
Customized packaging (Min. order: 1 set)
Graphic customization (Min. order: 1 set)
View details
Product descriptions from the supplier
Warning/Disclaimer
California Proposition 65 Consumer WarningView more
FREE shipping capped at $20
Minimum order quantity: 1 set
$480-1,000
*Taxes and import charges will be calculated at checkout
Variations
Select nowmodel number
UT 3020-300W
UT 3020-800W
UT 3040-300W
UT 3040-800W
UT 6040-1500W
UT 6040-2200W
