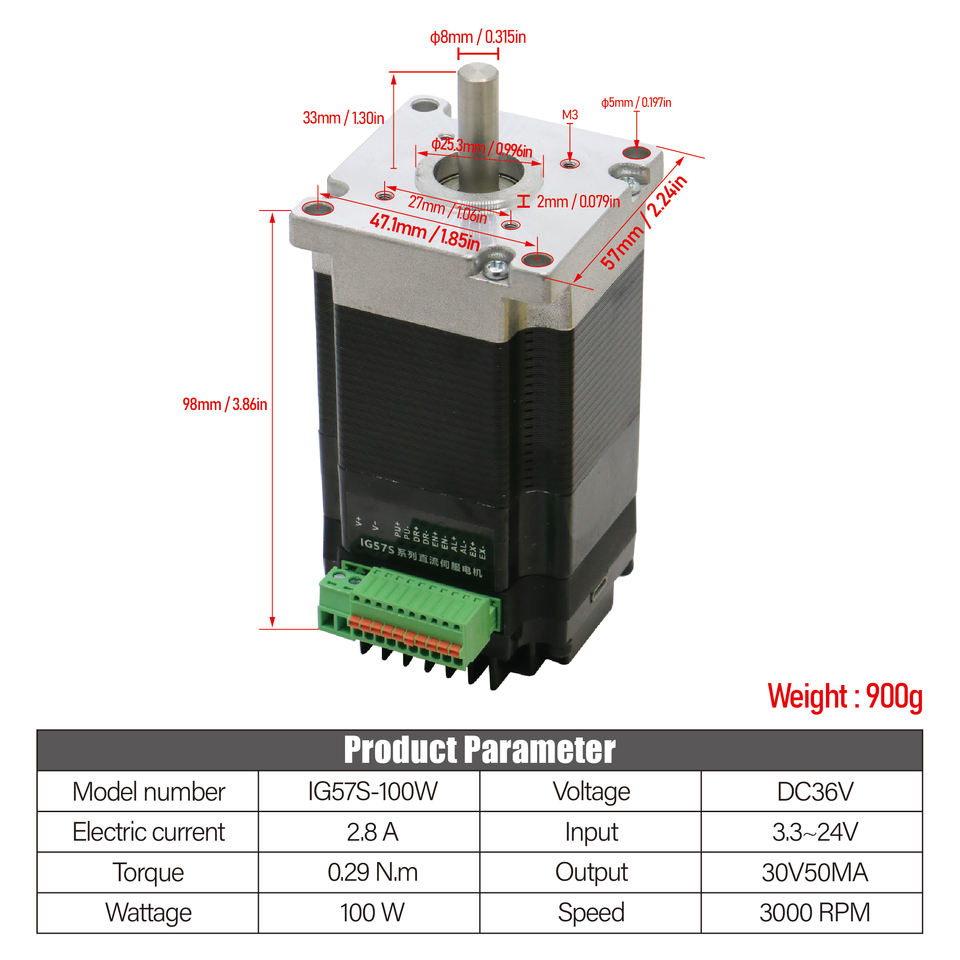

HLTNC 3000RPM IGS57-100W 2.8A 0.29NM DC 36V Nema 23 Integrated Servo Motor RS485 IP65 Flange Mount 14-digit Absolute Encoder
No reviews yet
Attributes
DC 36VRated voltage
100 WRated Power
3000Speed Rpm
3000rpmSpeed(RPM)
IE 1Efficiency
Servo MotorType
Continuous Current(A):2.8A
Place of Origin:Zhejiang, China
Frame:57mm
Motor Mounting Type:Flange Mount
Model Number:IGS57-100W
Brand Name:HLTNC
Protect Feature:IP65
Torque:0.29NM
Usage:CNC
Warranty:Other
Product name:100w DC nema 23 Integrated Servo Motor
Holding Torque:0.29N.m
Voltage:DC36V
Rated speed:3000rpm
Model number:IGS57-100W
current:2.8A
Control mode:RS485/ Pulse + direction
Encoder mode:14-digit absolute value (16,384 lines)
Key attributes
Rated voltage
DC 36V
Rated Power
100 W
Speed Rpm
3000
Speed(RPM)
3000rpm
Efficiency
IE 1
Type
Servo Motor
Frame
57mm
Motor Mounting Type
Flange Mount
Protect Feature
IP65
Usage
CNC
Warranty
Other
Continuous Current(A)
2.8A
Model Number
IGS57-100W
Torque
0.29NM
Place of Origin
Zhejiang, China
Brand Name
HLTNC
Product name
100w DC nema 23 Integrated Servo Motor
Holding Torque
0.29N.m
Voltage
DC36V
Rated speed
3000rpm
Model number
IGS57-100W
current
2.8A
Control mode
RS485/ Pulse + direction
Encoder mode
14-digit absolute value (16,384 lines)
Packaging and delivery
Selling Units
Single item
Single package size
22X11X11 cm
Single gross weight
3.000 kg
Lead time
Product descriptions from the supplier
Minimum order quantity: 1 set
$2480-2890
Variations
Select nowVoltage(V): DC36V
DC36V
Output Power: 100W
100W
Speed of Revolution
3000RPM(no RS485)
3000RPM(with RS485)
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
