3000 RPM Nema42 220V 110ST-M06030 6NM 1.8KW Nema 42 AC Servo Motor With Driver T3M
No reviews yet
Attributes
Single-PhasePhase
220VAC Voltage
1.8KWRated Power
3 000 RPMRated Speed
Servo MotorType
110 mmFrame
Model Number:110ST-M06030+T3M-L30F-GABN
Brand Name:HLTNC
Place of Origin:Zhejiang, China
Motor Mounting Type:Flange
Efficiency:IE 1
Frequency:50/60Hz
Protect Feature:IP65
Warranty:Other

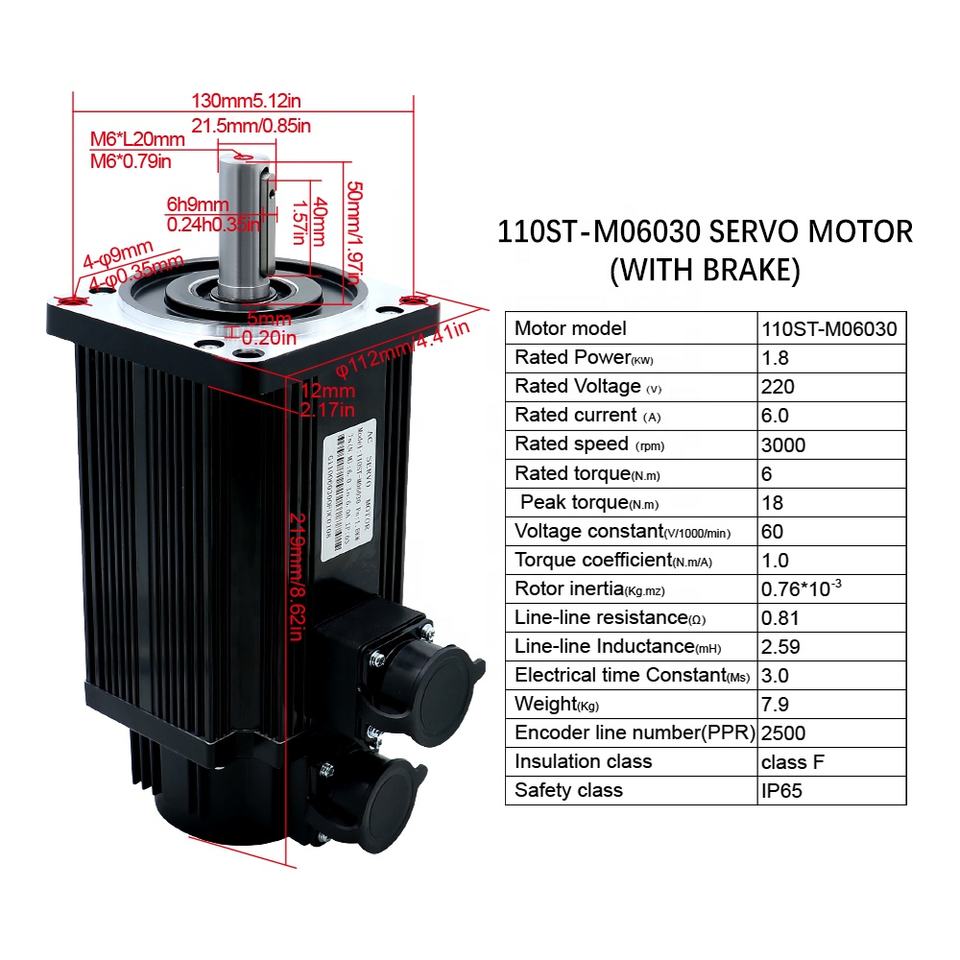

Product Name:110ST-M06030 Servo Motor(Optional with brakes)
Rated Voltage:220V
Peak torque(N.m):18
Rated current(A):6.0A
Rated speed(rpm):3000
Rotor inertia(Kg.m²):0.76*10^(-3)
Rated torque(N.m):6
Encoder line number(PPR):2500
Weight(Kg):7.9
Key attributes
Phase
Single-Phase
AC Voltage
220V
Rated Power
1.8KW(2.41hp)
Rated Speed
3 000 RPM
Type
Servo Motor
Frame
110 mm(4.33in)
Motor Mounting Type
Flange
Protect Feature
IP65
Efficiency
IE 1
Warranty
Other
Model Number
110ST-M06030+T3M-L30F-GABN
Brand Name
HLTNC
Frequency
50/60Hz
Place of Origin
Zhejiang, China
Product Name
110ST-M06030 Servo Motor(Optional with brakes)
Rated Power
1.8KW
Rated Voltage
220V
Peak torque(N.m)
18
Rated current(A)
6.0A
Rated speed(rpm)
3000
Rotor inertia(Kg.m²)
0.76*10^(-3)
Rated torque(N.m)
6
Encoder line number(PPR)
2500
Weight(Kg)
7.9
Packaging and delivery
Selling Units
Single item
Package size per batch
50.0X40.0X40.0 cm
Gross weight per batch
13.000 kg
Lead time
Product descriptions from the supplier
Minimum order quantity: 1 set
$17040-22680
Variations

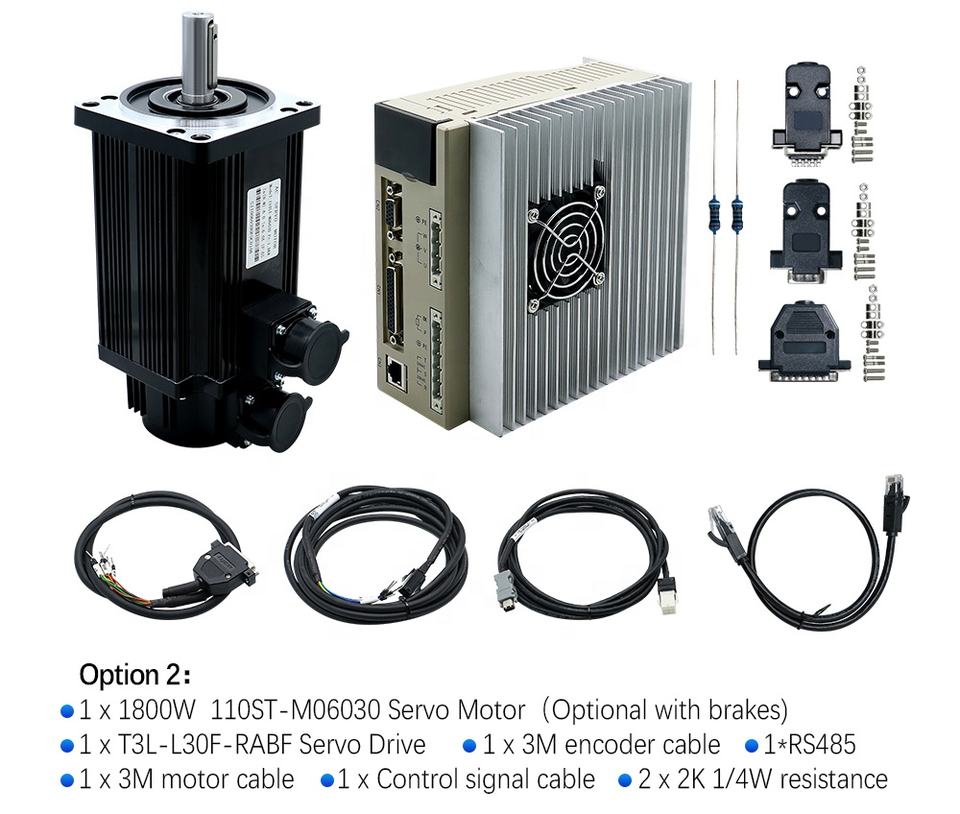

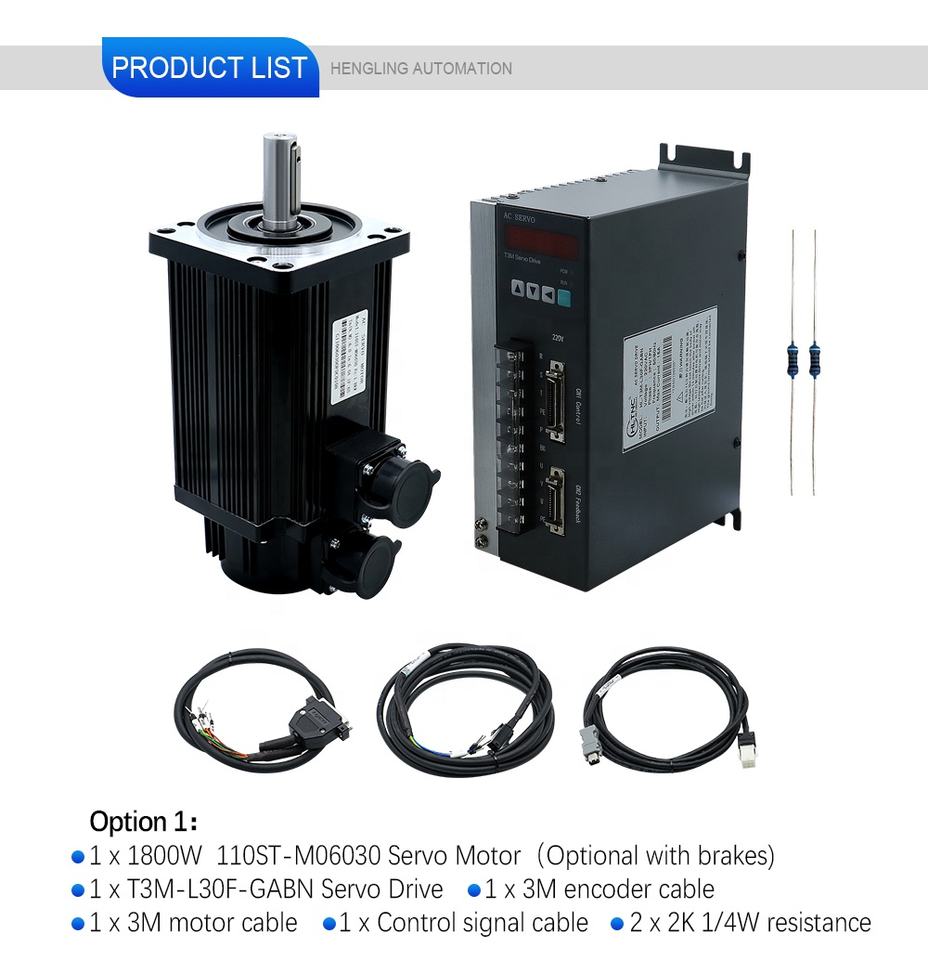

Select nowOutput Power
1.8KW,6nm,3m line,no rs485,without brake
1.8KW,6nm,3m line,no rs485,with brake
