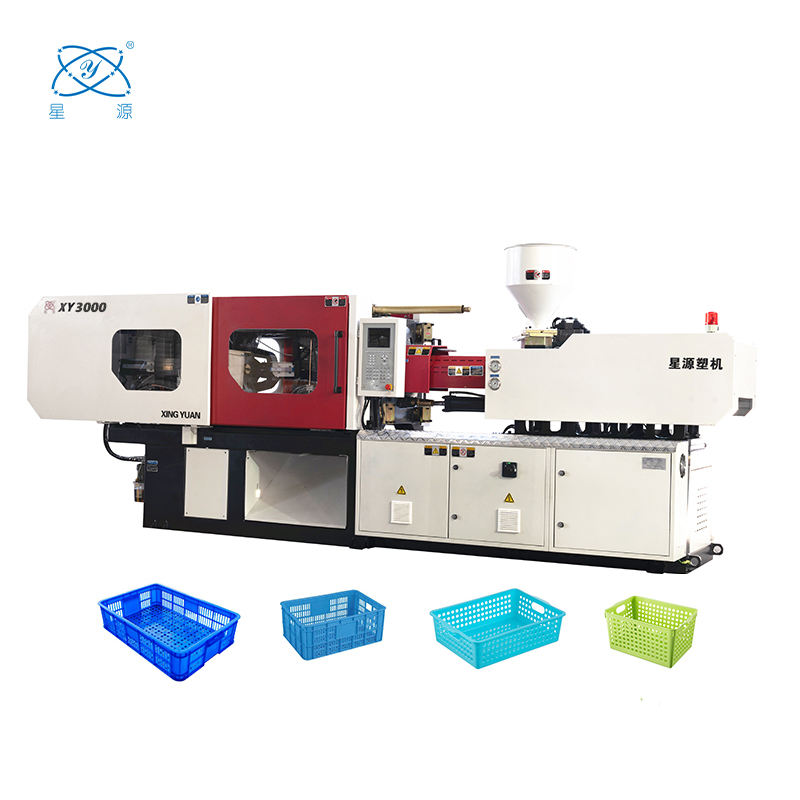

XY3000 300 Ton Plastic Injection Molding Machine for PP/HDPE Fruit Vegetable Crate Production
No reviews yet
Attributes
Hydraulicmachine type
630x630 mmdistance between tie bars
PP, ABS, PPR, Polystyrene, PE, LDPE, HDPE/PP, ABS/PP, PE/PPplastic processed
Horizontalstyle
Energy Savingkey selling points
Othercore components
plasticizing capacity(g/s):266
injection weight (g):732
injection rate (g/s):266
weight (kg):8300
place of origin:China
power (kw):37
warranty:1 Year
mold height(mm):200 - 630 mm
ejector stroke(mm):150
ejector force(kn):70
theoretical shot volume(cm³):805
screw diameter (mm):60
Screw L/D Ratio:22
open stroke(mm):590
model number:XY3000
brand name:XingYuan
machinery test report:Provided
video outgoing-inspection:Provided
CLAMP FORCE:3000kn
OPEN STROKE:590mm
SPACE BETWEEN TIE BARS(W*H):630x630mm
MAX.MOULD HEIGHT:630mm
MIN.MOULD HEIGHT:200mm
EJECTOR STROKE:150mm
EJECTOR FORCE:70kn
MAX.PUMP PRESSURE:16MPa
PUMP MOTOR POWER:30kw
HEATING POWER:18.3kw
Key attributes
machine type
Hydraulic
distance between tie bars
630x630 mm(24.80x24.80in)
plastic processed
PP, ABS, PPR, Polystyrene, PE, LDPE, HDPE/PP, ABS/PP, PE/PP
style
Horizontal
key selling points
Energy Saving
core components
Other
warranty
1 Year
machinery test report
Provided
video outgoing-inspection
Provided
Screw L/D Ratio
22
brand name
XingYuan
ejector force(kn)
70
ejector stroke(mm)
150
injection rate (g/s)
266
injection weight (g)
732
model number
XY3000
mold height(mm)
200 - 630 mm(7.87-24.80in)
open stroke(mm)
590
place of origin
China
plasticizing capacity(g/s)
266
power (kw)
37
screw diameter (mm)
60
theoretical shot volume(cm³)
805
weight (kg)
8300
CLAMP FORCE
3000kn
OPEN STROKE
590mm
SPACE BETWEEN TIE BARS(W*H)
630x630mm
MAX.MOULD HEIGHT
630mm
MIN.MOULD HEIGHT
200mm
EJECTOR STROKE
150mm
EJECTOR FORCE
70kn
MAX.PUMP PRESSURE
16MPa
PUMP MOTOR POWER
30kw
HEATING POWER
18.3kw
Packaging and delivery
Selling Units
Single item
Lead time
Minimum order quantity: 1 set
$27,600
