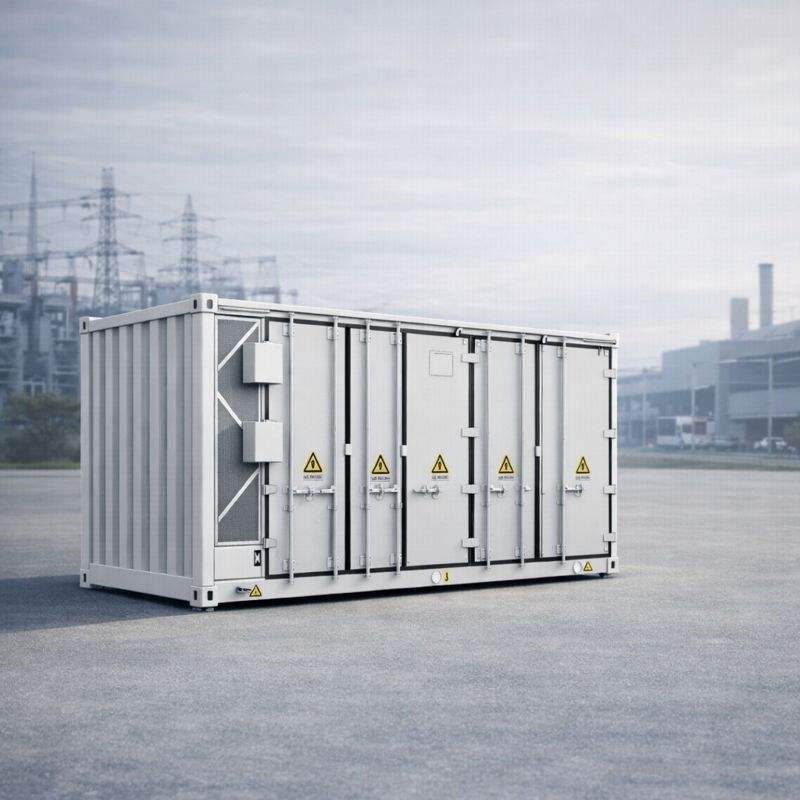

20ft 5MWh Turnkey EPC BESS Container LiFePO4 Liquid Cooling IP55 FM200 RS485 CAN ETH DE-AR-N 4105
No reviews yet
Attributes
LiFePO4Battery Type
Hybrid gridGrid connection
Liquid cooling + air conditioningCooling
RS485Communication Interface
RS485 + CAN + EthernetCommunication Port
6058*2462*2896mmDimension (L*W*H)
Place of Origin:China
Weight:37000-45000 kg
Container Size:20ft ISO Container
Cooling System:Liquid cooling + air conditioning
Grid Connection:Hybrid grid (grid-tied & off-grid)
Protection Class:IP55
Operating Temperature:-20°C to 55°C (-4°F to 131°F)
Humidity:10% to 95% RH
Altitude:<2000 m (2000-4000 m derating operation)
Fire Fighting System:FM200 extinguishing system
Noise Level:≤75 dB @1 m (3.28 ft)
Certifications:UN38.3 / IEC62619 / DE-AR-N 4105 / IEC 62109
Key attributes
Battery Type
LiFePO4
Grid connection
Hybrid grid
Cooling
Liquid cooling + air conditioning
Communication Interface
RS485
Communication Port
RS485 + CAN + Ethernet
Dimension (L*W*H)
6058*2462*2896mm
Place of Origin
China
Weight
37000-45000 kg
Container Size
20ft ISO Container
Battery Type
LiFePO4 (LFP)
Cooling System
Liquid cooling + air conditioning
Grid Connection
Hybrid grid (grid-tied & off-grid)
Protection Class
IP55
Communication Port
RS485 + CAN + Ethernet (ETH)
Operating Temperature
-20°C to 55°C (-4°F to 131°F)
Humidity
10% to 95% RH
Altitude
<2000 m (2000-4000 m derating operation)
Fire Fighting System
FM200 extinguishing system
Noise Level
≤75 dB @1 m (3.28 ft)
Certifications
UN38.3 / IEC62619 / DE-AR-N 4105 / IEC 62109
Packaging and delivery
Selling Units
Single item
Lead time
Product descriptions from the supplier
Minimum order quantity: 2 pieces
$300,000-1,000,000
Variations
Select nowCapacity: 3.7MWH
3.7MWH
5MWH
System Voltage Range: Above 1500 V
Above 1500 V
System Energy Range: ＞1MW
＞1MW
Container Size
20 ft
