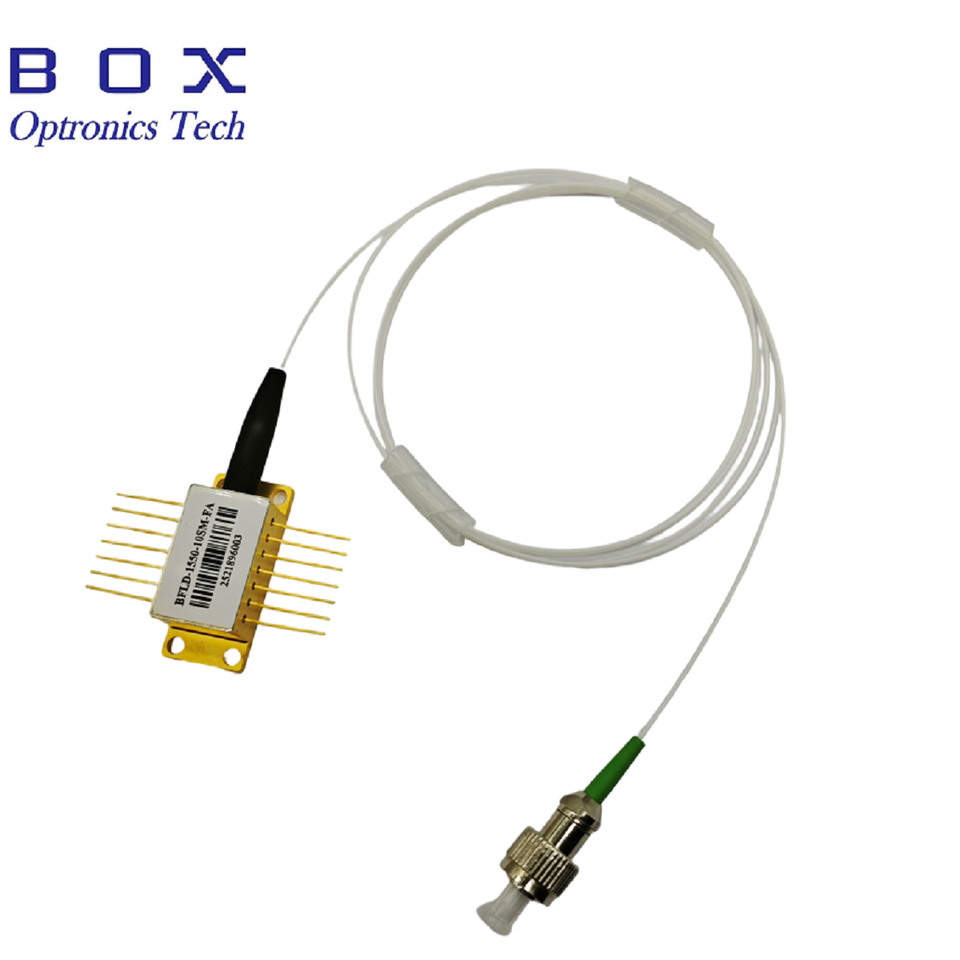

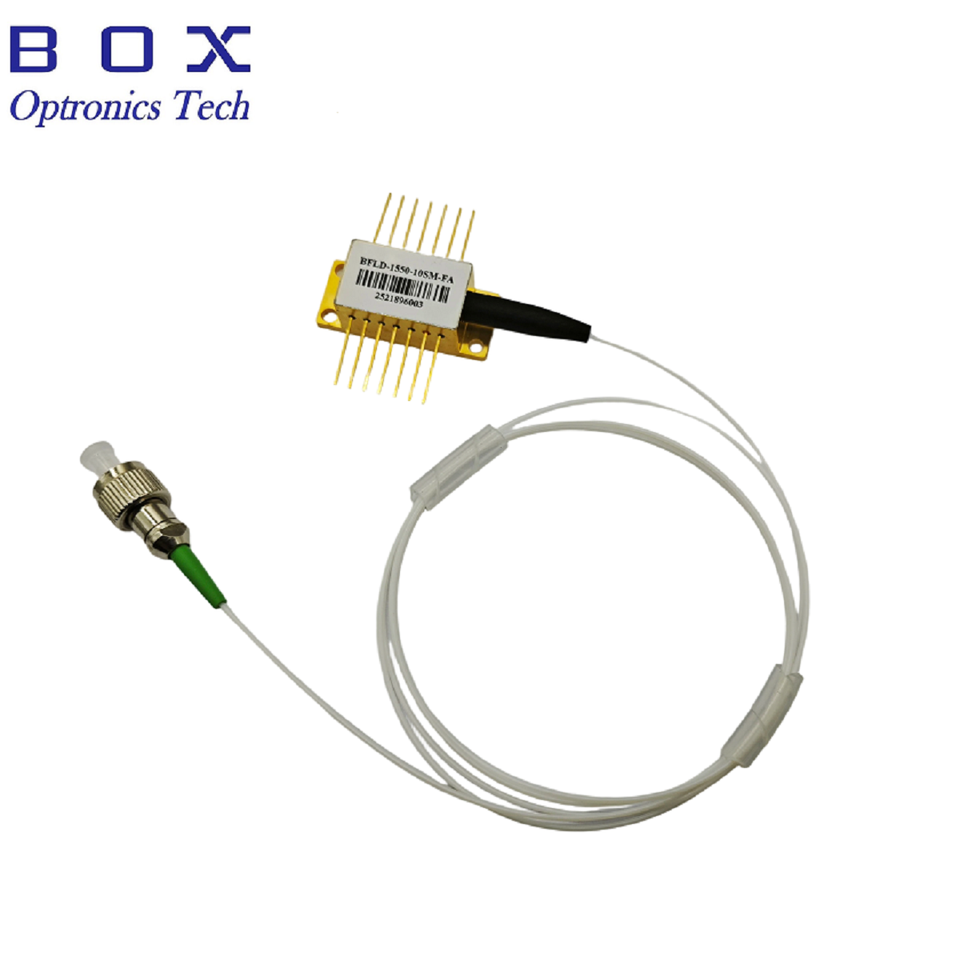

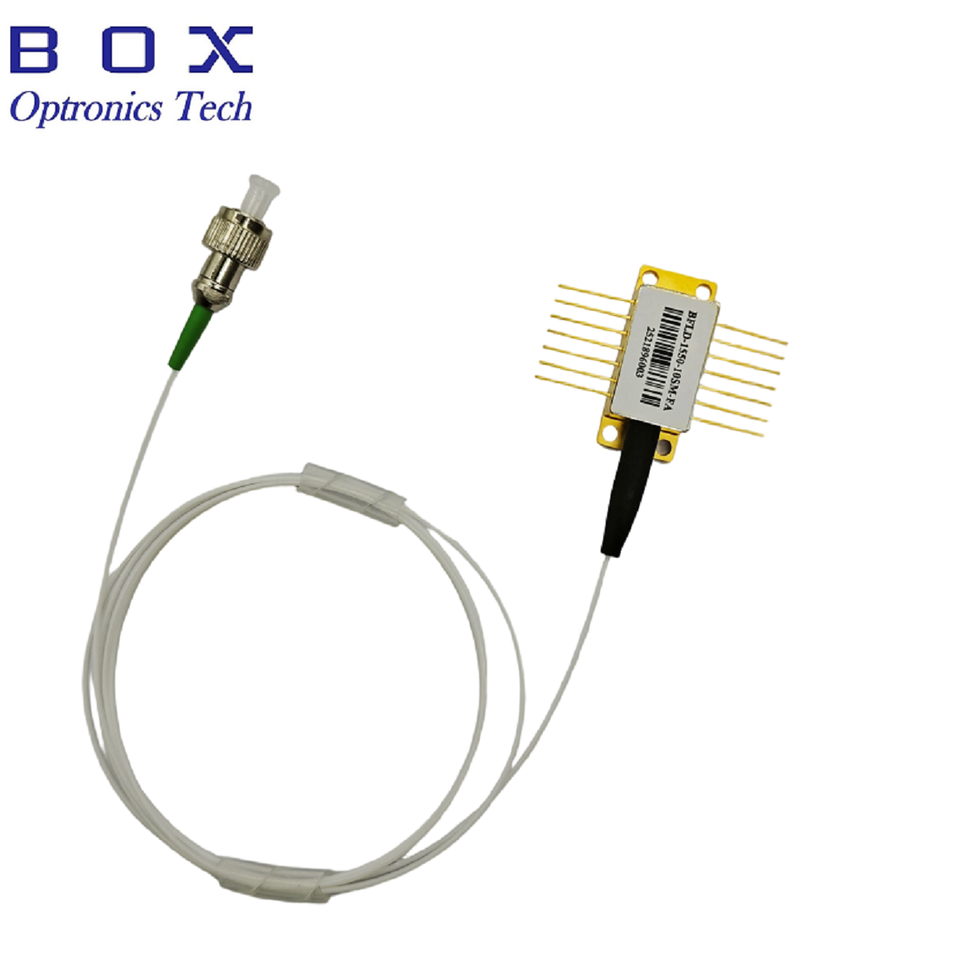

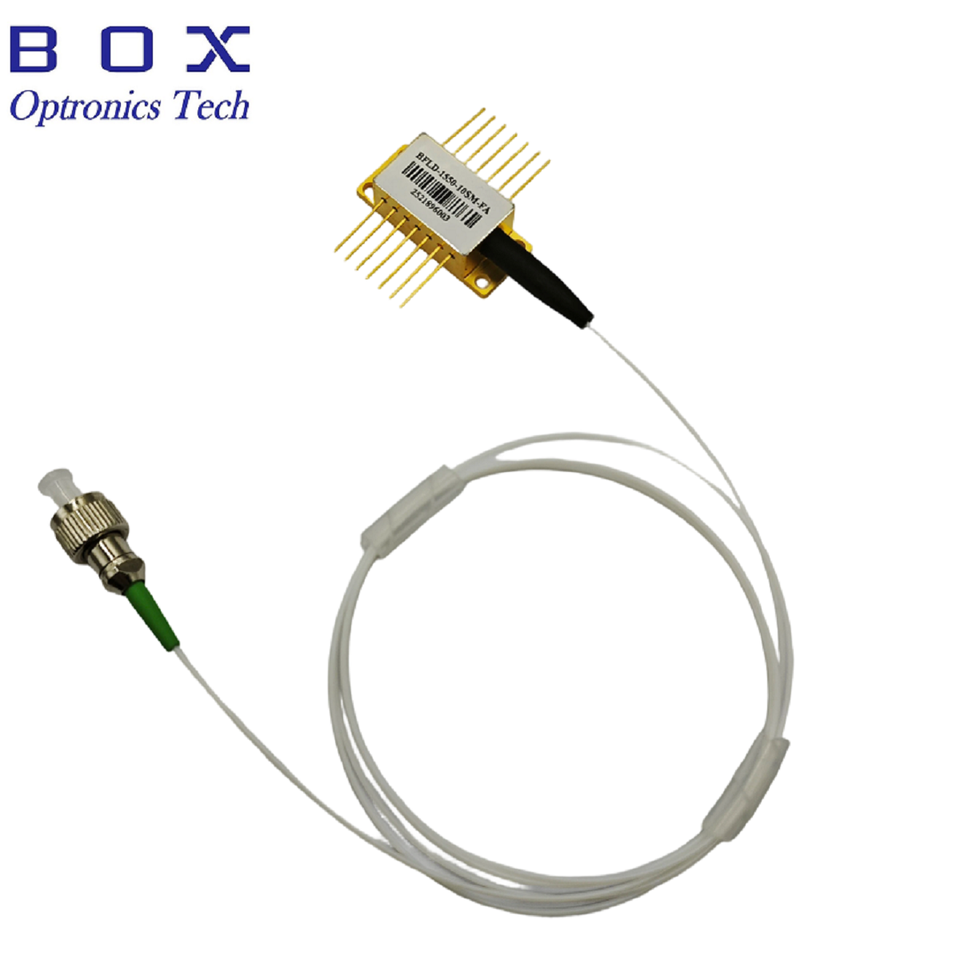

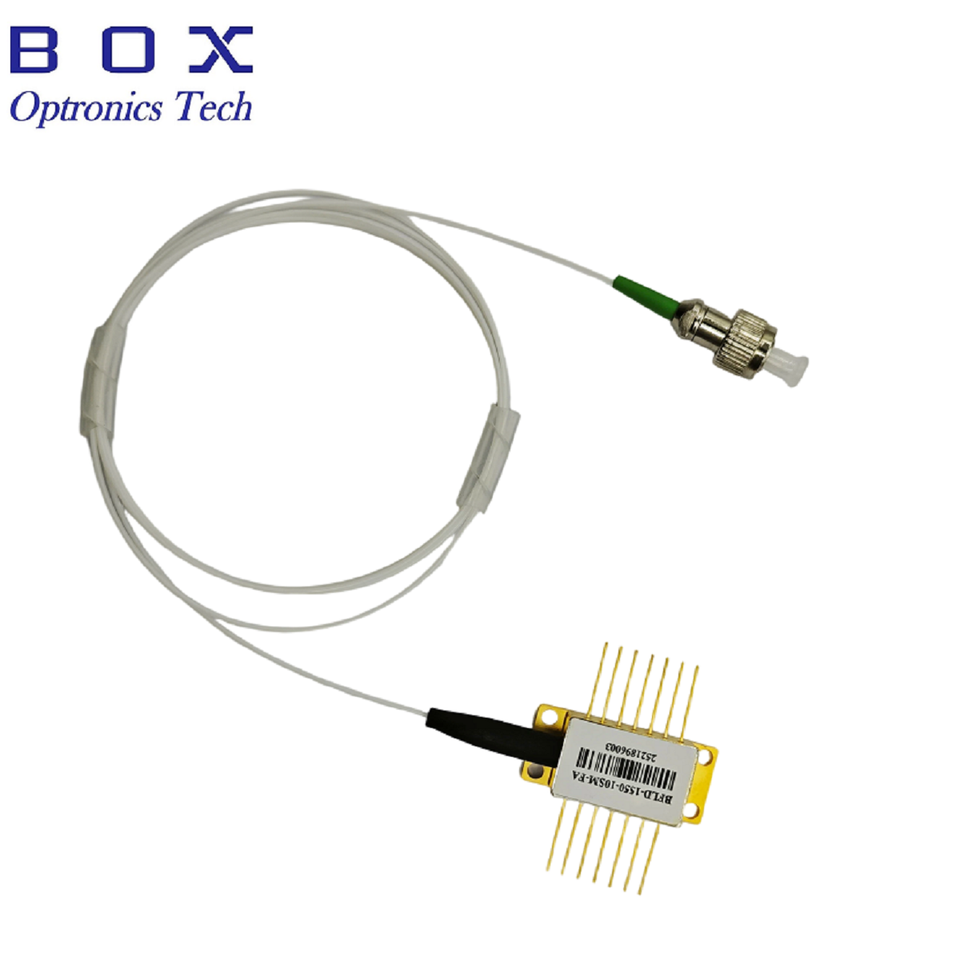

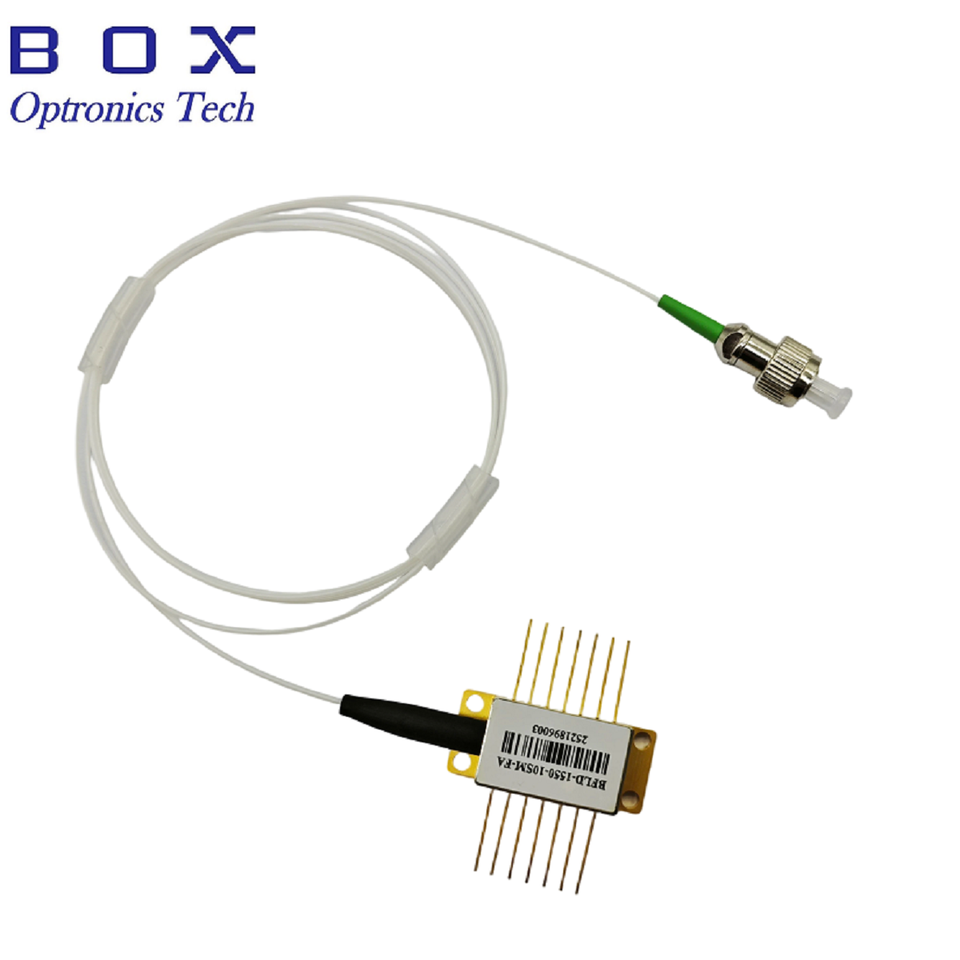

1654nm 10mW DFB Butterfly Laser FCAPC ±0 5nm For CH4 Methane Gas Detection TDLAS
No reviews yet
Attributes
DFB Laser SourceType
Single mode fiber /Optional FC/APC connectorConnector Type
otherUse
NoneNetwork
BFLD-1653-10SM-FAModel Number
BOXBrand Name
Place of Origin:Guangdong, China
Warranty Time:1 Years
Port:other
Frequency Range:other
Laser Type:MQW DFB in 14-pin butterfly package
Wavelength Range:1270-1610nm, 1310nm, 1550nm, 1650nm, or 1653.7nm ±spec
Output Power:10mW-100mW (model dependent)
Spectral Performance:SMSR ≥35dB, spectral width (-20dB) ≤1.0nm
Fiber & Connector:SMF-28e or PMF-1550, FC/APC, 900μm loose tube
Thermal Control:Built-in TEC & thermistor for temp stability
Operating Conditions:Case Temp: -20°C to +70°C; Storage: -40°C to +85°C
Electrical Specs:Operating current 90mA-400mA; voltage 1.1V-3.0V
Reliability & Certs:RoHS compliant; Telcordia GR-468 (CH4 model)
Key Applications:Fiber comm, sensors, testing, gas detection (CH4)
Key attributes
Type
DFB Laser Source
Connector Type
Single mode fiber /Optional FC/APC connector
Use
other
Network
None
Model Number
BFLD-1653-10SM-FA
Brand Name
BOX
Place of Origin
Guangdong, China
Warranty Time
1 Years
Port
other
Frequency Range
other
Laser Type
MQW DFB in 14-pin butterfly package
Wavelength Range
1270-1610nm, 1310nm, 1550nm, 1650nm, or 1653.7nm ±spec
Output Power
10mW-100mW (model dependent)
Spectral Performance
SMSR ≥35dB, spectral width (-20dB) ≤1.0nm
Fiber & Connector
SMF-28e or PMF-1550, FC/APC, 900μm loose tube
Thermal Control
Built-in TEC & thermistor for temp stability
Operating Conditions
Case Temp: -20°C to +70°C; Storage: -40°C to +85°C
Electrical Specs
Operating current 90mA-400mA; voltage 1.1V-3.0V
Reliability & Certs
RoHS compliant; Telcordia GR-468 (CH4 model)
Key Applications
Fiber comm, sensors, testing, gas detection (CH4)
Packaging and delivery
Selling Units
Single item
Lead time
Customization options
Customized logo(+ from /Min. order: 1,000 units)
Customized packaging(+ from /Min. order: 1,000 units)
Graphic customization(+ from /Min. order: 1,000 units)
View details
Product descriptions from the supplier
Minimum order quantity: 1 unit
$290-350
