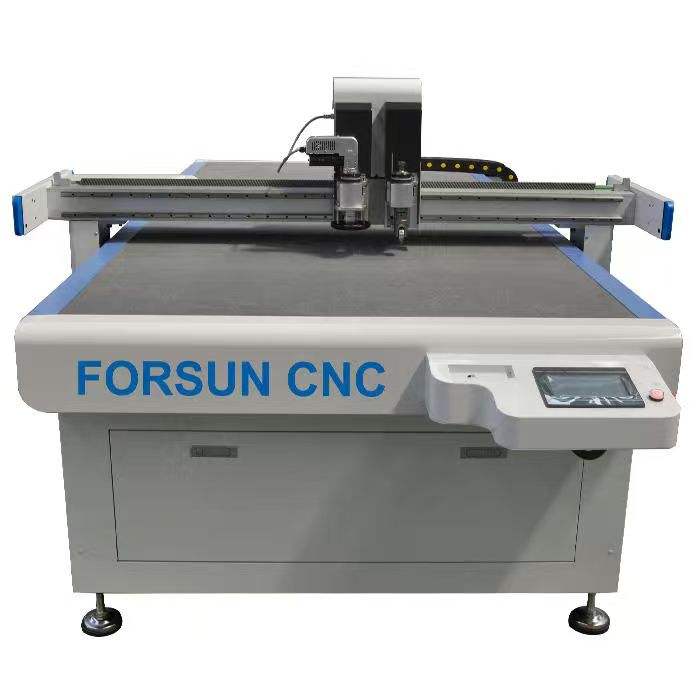

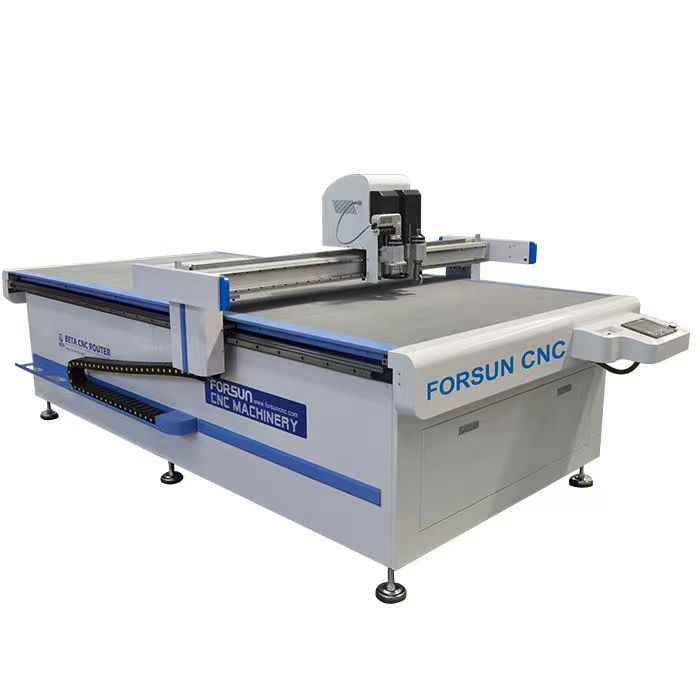

1530 Wood CNC Router with Oscillating Knife CCD Camera for Cutting Wood Foam Rober
Store rating:4.9
(215 reviews)
Attributes
3number of axes
AC380V/50HZ, 3PHvoltage
CNC Routermachine type
SingleNo. of Spindles
Easy To Operatekey selling points
Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearboxcore components
cnc or not:CNC
place of origin:Shandong, China
weight (kg):1500
warranty:1.5 year
range of spindle speed(r.p.m):1 - 24000 rpm
positioning accuracy (mm):0.03
travel (x axis)(mm):1300
travel (y axis)(mm):2500
repeatability (x/y/z) (mm):0.03
Spindle Motor Power (kw):9
brand name:FORSUN
dimension(l*w*h):3200*2150*1850mm
machinery test report:Provided
video outgoing-inspection:Provided
Item:1325 Oscillating Knife Machine
color:white (You can customize)
Working Area:1300*2500*200mm

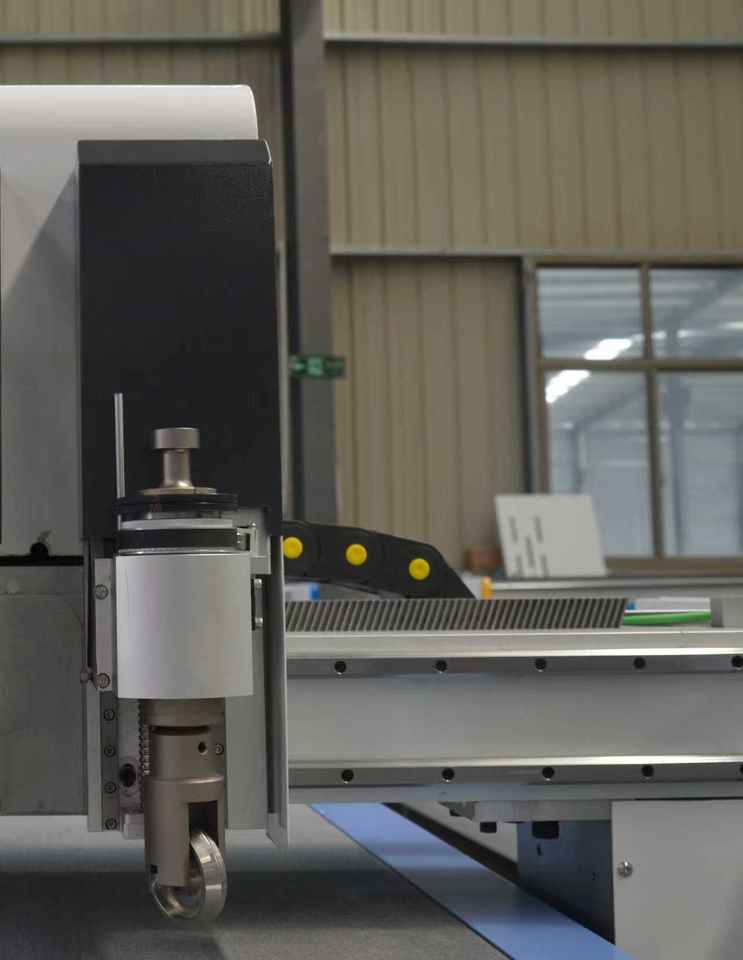

Cutter:Oscillating Knife Cutter
Optional Parts:Creasing Wheel,V-Cut tools,CCD System,Router Spindle
Motor and driver:Servo Motor and Driver
Transmission:Helical Rack and Pinion and Taiwan TBI ball screw
Guide rail:Taiwan PMI Linear Square Guide Rail

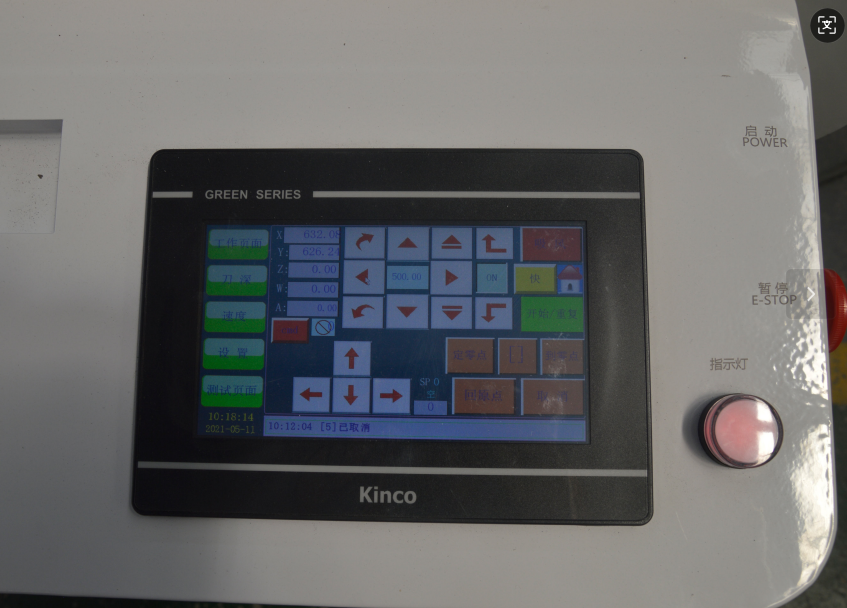

Control system:MCGS CUT Panel Controller
Dust collector system(Optional):3.0KW Dust collector system with 2 bags
Key attributes
number of axes
3
voltage
AC380V/50HZ, 3PH
machine type
CNC Router
No. of Spindles
Single
key selling points
Easy To Operate
core components
Bearing, Motor, Pump, Gear, PLC, Pressure Vessel, Engine, Gearbox
warranty
1.5 year
cnc or not
CNC
video outgoing-inspection
Provided
machinery test report
Provided
Spindle Motor Power (kw)
9
brand name
FORSUN
dimension(l*w*h)
3200*2150*1850mm(125.98*84.65*72.83in)
place of origin
Shandong, China
positioning accuracy (mm)
0.03
range of spindle speed(r.p.m)
1 - 24000 rpm
repeatability (x/y/z) (mm)
0.03
travel (x axis)(mm)
1300
travel (y axis)(mm)
2500
weight (kg)
1500
Item
1325 Oscillating Knife Machine
color
white (You can customize)
Working Area
1300*2500*200mm
Cutter
Oscillating Knife Cutter
Optional Parts
Creasing Wheel,V-Cut tools,CCD System,Router Spindle
Motor and driver
Servo Motor and Driver
Transmission
Helical Rack and Pinion and Taiwan TBI ball screw
Guide rail
Taiwan PMI Linear Square Guide Rail
Control system
MCGS CUT Panel Controller
Dust collector system(Optional)
3.0KW Dust collector system with 2 bags
Packaging and delivery
Selling Units
Single item
Package size per batch
10X10X40 cm
Gross weight per batch
1.000 kg
