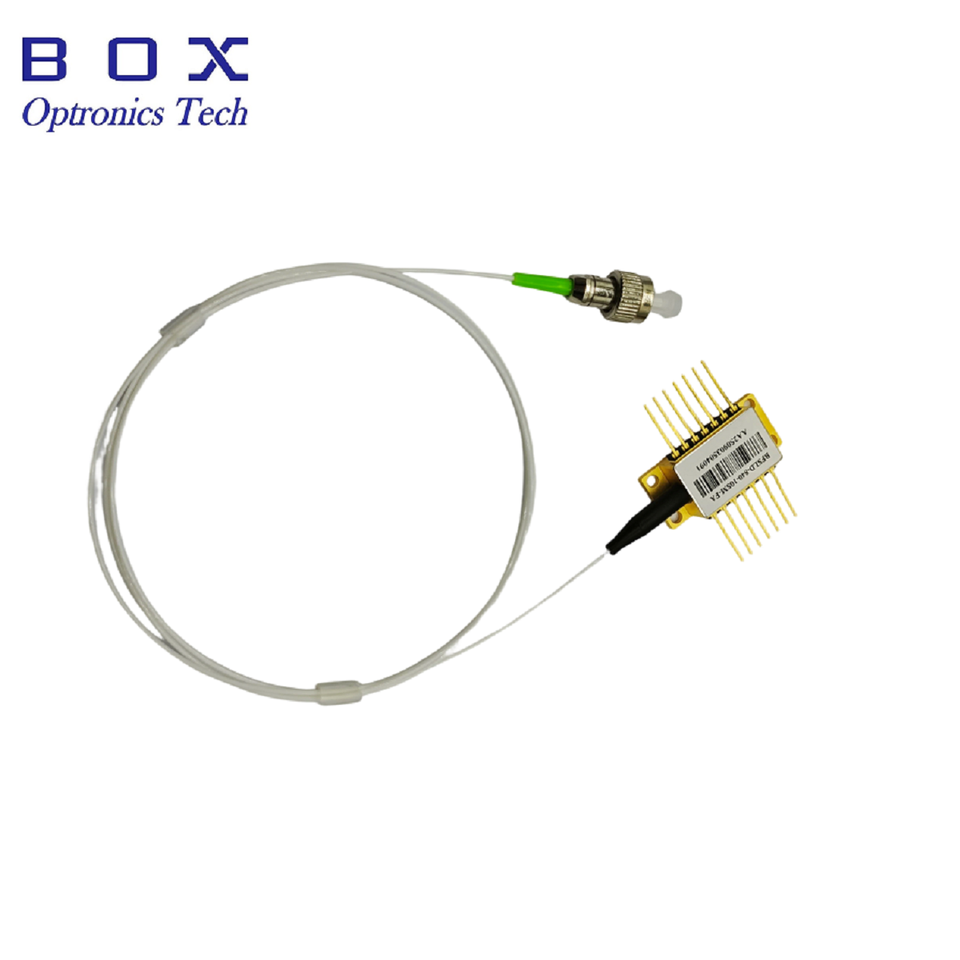

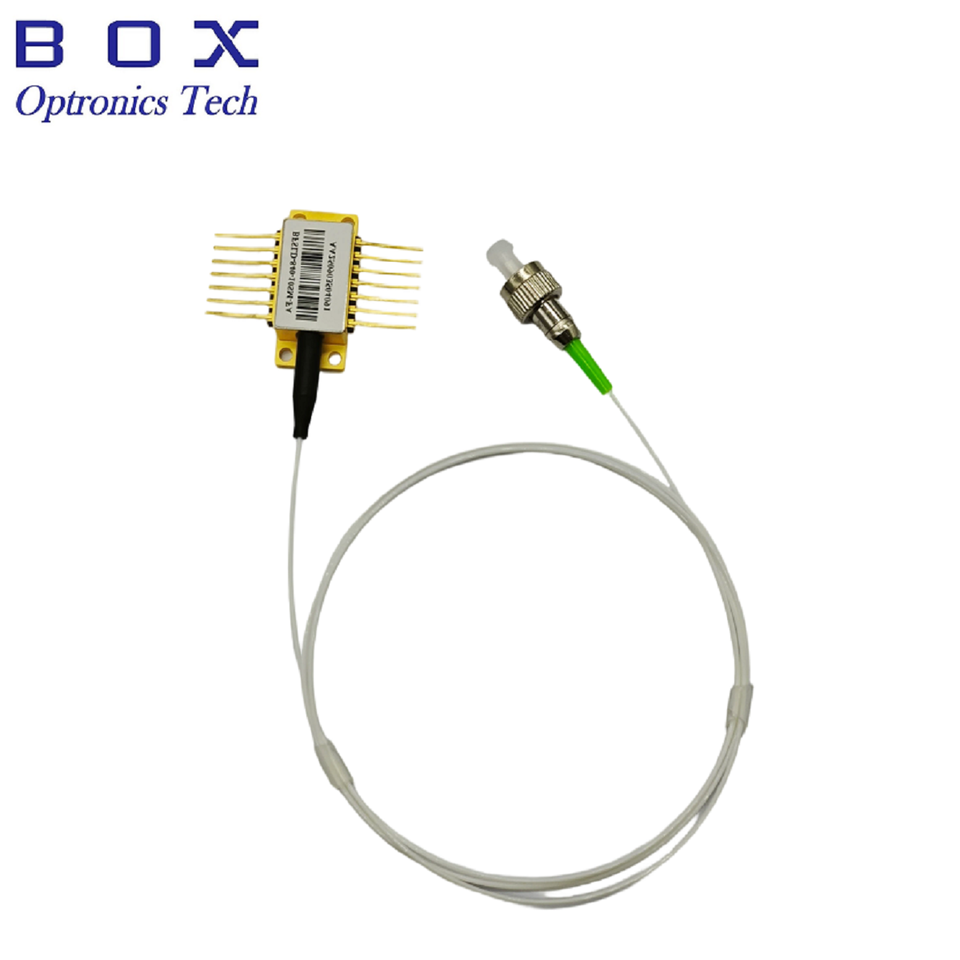

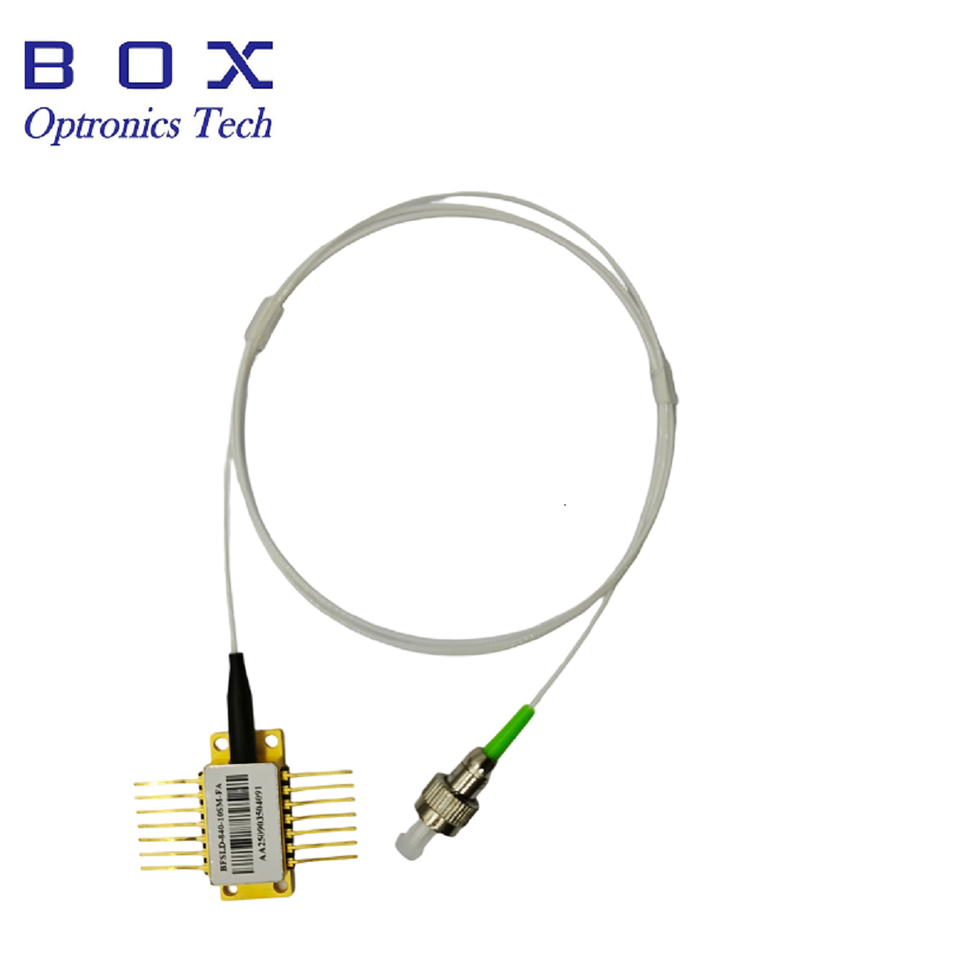

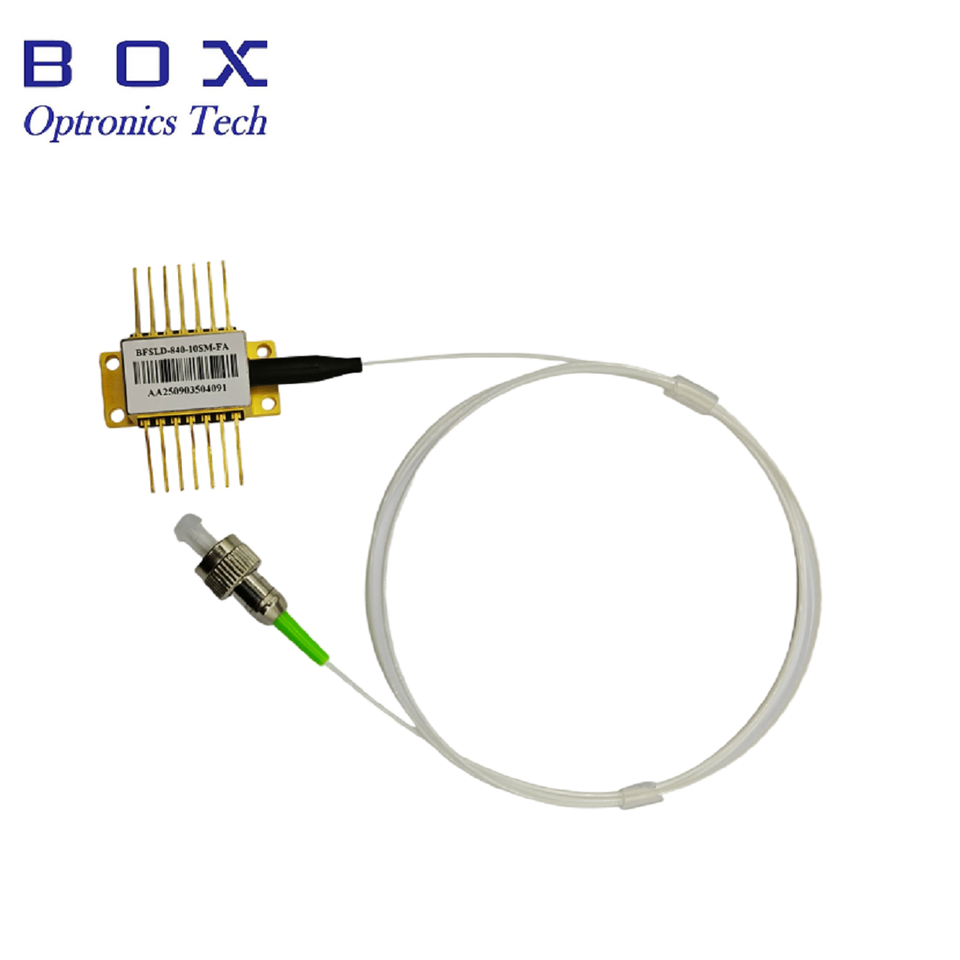

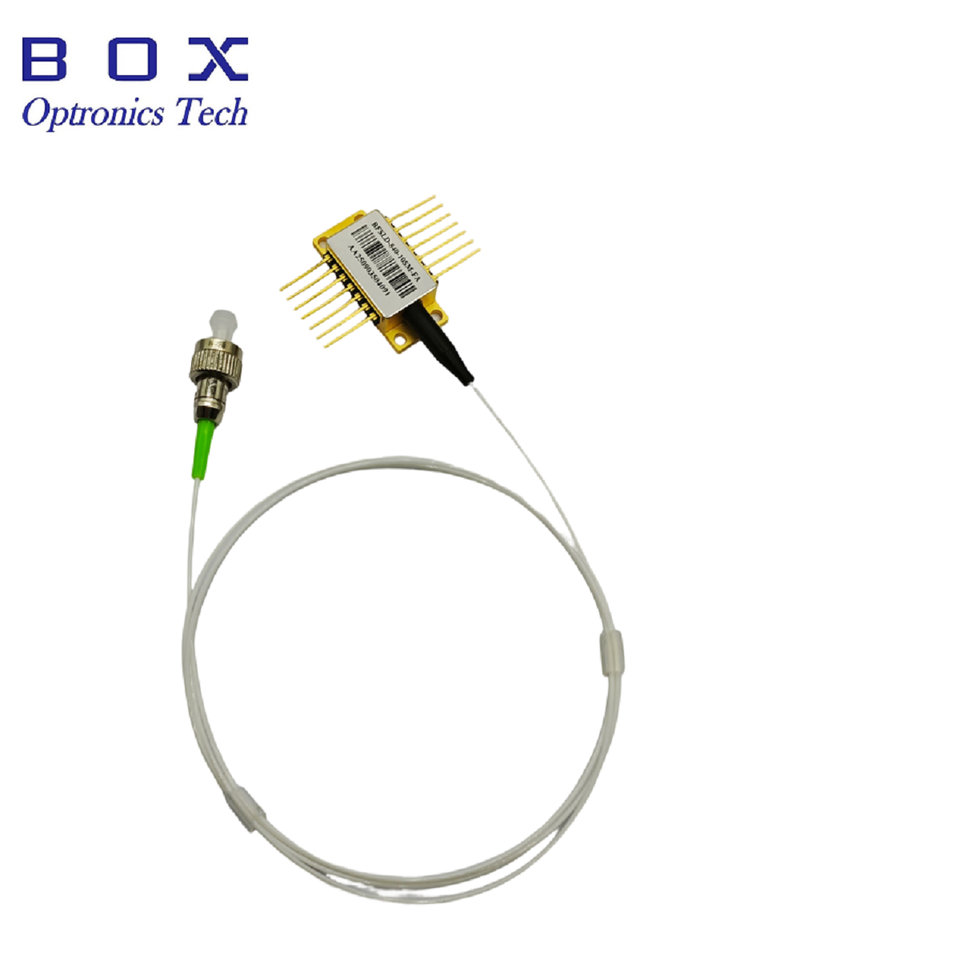

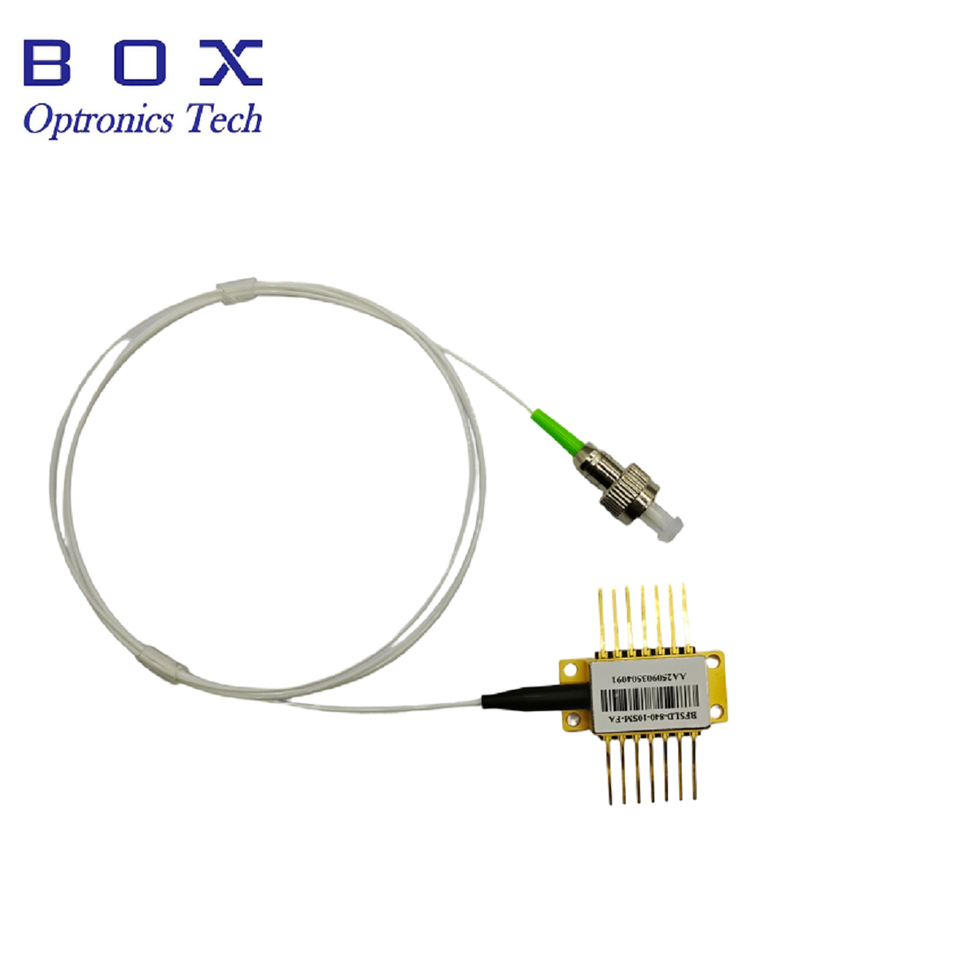

1310nm 15mW SLED Butterfly Broadband Source FCAPC ±20nm for OCT Fiber Gyroscopes Medical Imaging
No reviews yet
Attributes
BFSLD-1310-15SM-FAModel Number
DFB Laser SourceType
BOXBrand Name
Guangdong, ChinaPlace of Origin
otherUse
1 YearsWarranty Time
Network:None
Port:other
Connector Type:Single mode fiber /Optional FC/APC connector
Frequency Range:other
Light Source Type:SLED in 14-pin butterfly package
Wavelength Range:1310nm ±20nm broadband spectrum
Output Power:15mW (SMF-28e fiber)
3dB Bandwidth:>35nm spectral width
Fiber Interface:FC/APC connector, 900μm loose tube
Thermal Control:Built-in TEC for temperature stability
Operating Temp:-45°C to +70°C (case)
Electrical Specs:200mA max current, 3.2V max
Reliability & Certs:Telcordia GR-468 compliant
Applications:OCT, fiber gyroscopes, medical imaging
Key attributes
Model Number
BFSLD-1310-15SM-FA
Type
DFB Laser Source
Brand Name
BOX
Place of Origin
Guangdong, China
Use
other
Warranty Time
1 Years
Network
None
Port
other
Connector Type
Single mode fiber /Optional FC/APC connector
Frequency Range
other
Light Source Type
SLED in 14-pin butterfly package
Wavelength Range
1310nm ±20nm broadband spectrum
Output Power
15mW (SMF-28e fiber)
3dB Bandwidth
>35nm spectral width
Fiber Interface
FC/APC connector, 900μm loose tube
Thermal Control
Built-in TEC for temperature stability
Operating Temp
-45°C to +70°C (case)
Electrical Specs
200mA max current, 3.2V max
Reliability & Certs
Telcordia GR-468 compliant
Applications
OCT, fiber gyroscopes, medical imaging
