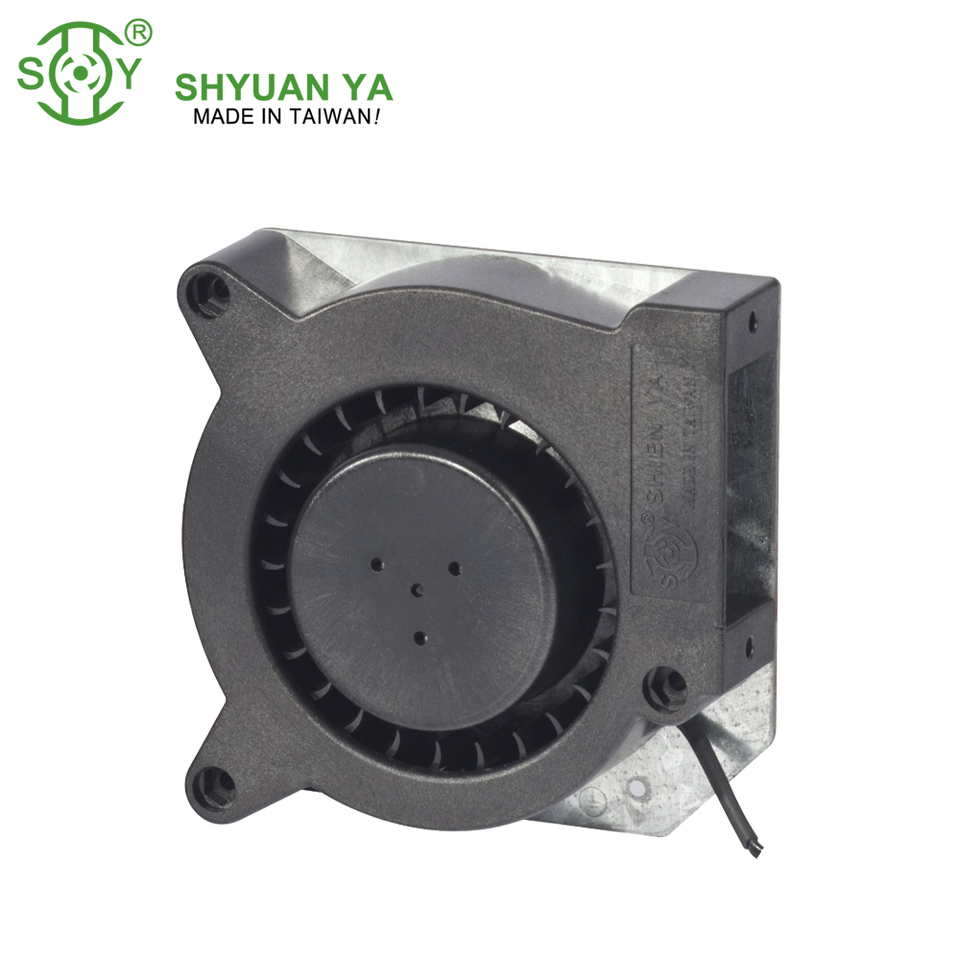

121x37mm DC Curved Blades Radial Type Double Inlet Backward Centrifugal Fan Plastic Blades Electric OEM Customizable Low Blower
No reviews yet40 sold
Attributes
Air Blowerapplication
Electricpower source
12V/24V/48Vrated voltage
DCElectric Current Type
PlasticBlade Material
Low Pressurepressure
place of origin:Taiwan, China
customized support:OEM, ODM
brand name:SHYAN YU
model number:BD121-37T
Air Flow:22 ~ 26 CFM
Housing:Polycarbonate
Housing Base:Galvanized Steel Plate
Impeller:Polycarbonate
Bearing:Ball or Sleeve
Termination:Lead Wire 1007 AWG#24
Operating Temperature:-20°C to +80°C
Weight:500g
Function:Function type is optional
Certification:CE
Key attributes
application
Air Blower
power source
Electric
rated voltage
12V/24V/48V
Electric Current Type
DC
Blade Material
Plastic
pressure
Low Pressure
customized support
OEM, ODM
place of origin
Taiwan, China
brand name
SHYAN YU
model number
BD121-37T
Air Flow
22 ~ 26 CFM
Housing
Polycarbonate
Housing Base
Galvanized Steel Plate
Impeller
Polycarbonate
Bearing
Ball or Sleeve
Termination
Lead Wire 1007 AWG#24
Operating Temperature
-20°C to +80°C
Weight
500g
Function
Function type is optional
Certification
CE
Packaging and delivery
Selling Units
Single item
Single package size
12.1X12.1X3.7 cm
Single gross weight
0.500 kg
Lead time
Customization options
Customized logo (Min. order: 1,000 pieces)
View details
Product descriptions from the supplier
Customizable
Minimum order quantity: 20 pieces
$1-15
Sample price: $36.87
Variations
Select nowtype: Centrifugal Fan
Centrifugal Fan
rated power: 7.5~11.5W
7.5~11.5W
max air flow
22~26CFM
Customization options
Customized logo (Min. order: 1,000 pieces)
