Attributes
1.0%accuracy
liquidMedium

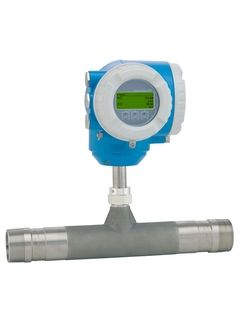

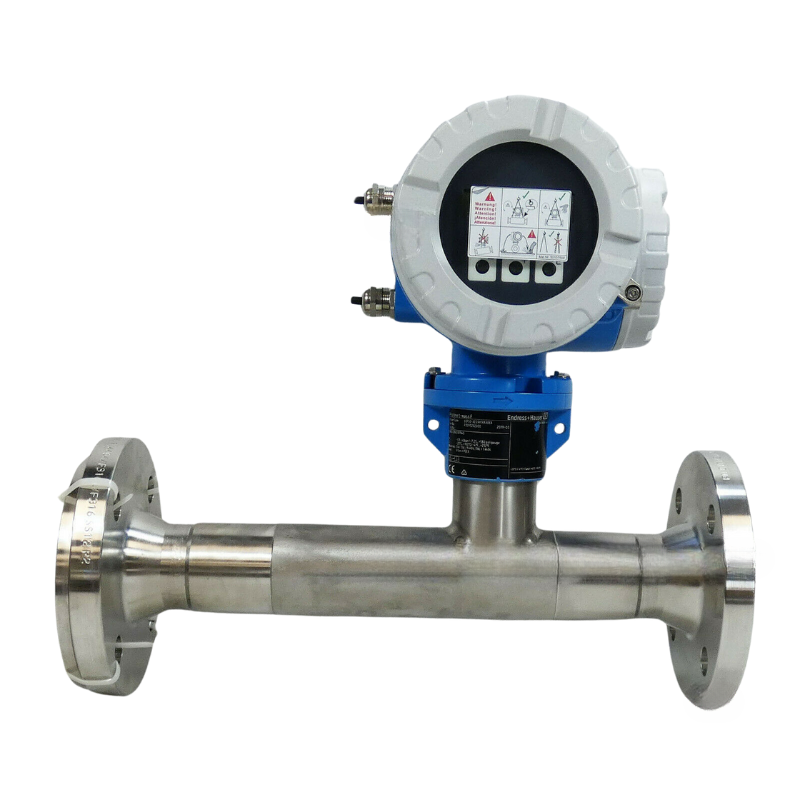

Variable Area Air & Gas Flowmeters, thermal mass flowmetertype
Germanyplace of origin
/Connectivity
/Flow Rate
material:Stainless Steel, Plastic
Measurement Range:0 to 450 kg/h (0 to 16.54 lb/min)
model number:F500
customized support:OEM, ODM, OBM
warranty:1 years
Nominal Diameter Range:DN 15 to DN 100 (1/2" to 4")
Max. Measurement Error:Gas: 1.0% o.r. (10 to 100% o.f.s.), 0.1% o.f.s. (1 to 10% o.f.s.)
Measuring Range:0.5 to 3750 kg/h (1.1 to 8250 lb/h)
Max. Process Pressure:PN40 / Cl. 300 / 20K
Medium Temperature Range:-40 °C to +180°C (-40 °F to +356 °F)
Ambient Temperature Range:-40 to 60°C (-40 to 140°F)
Degree Of Protection:IP66/67, Type 4X enclosure Sensor: IP68, Type 6P
Display/Operation:4-line backlit display with touch control
Outputs:4-20 mA HART
Power Supply:DC 24V AC 100 to 240V
