Attributes
±0.10 %/±0.0005 g/cmaccuracy
liquidMedium
Coriolis Meters, Coriolis flowmetertype
Germanyplace of origin
/Connectivity
/Flow Rate
material:316/316L
Measurement Range:0 to 450 kg/h (0 to 16.54 lb/min)

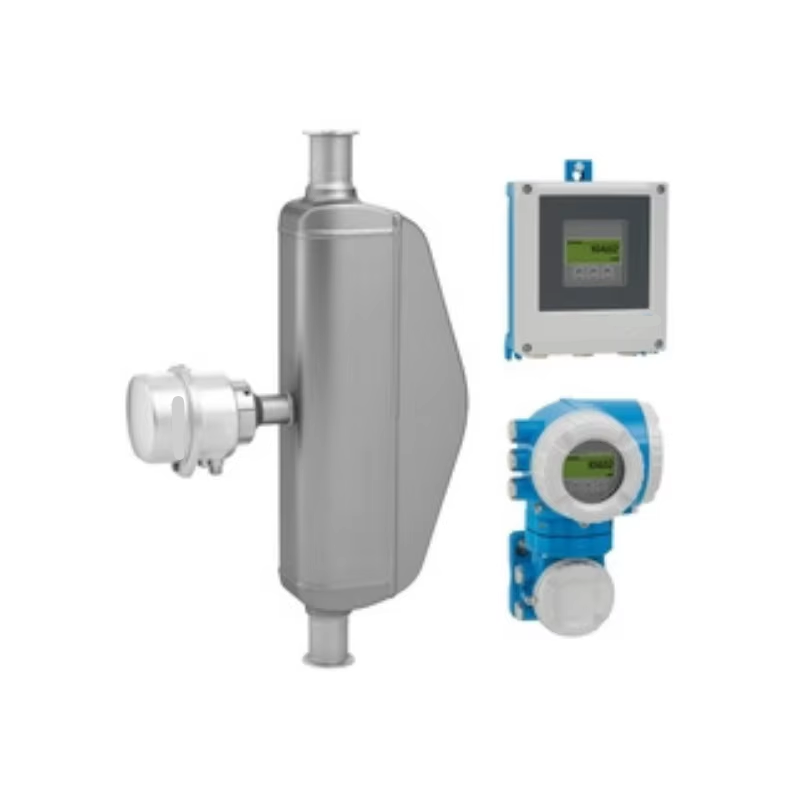

model number:Promass S500
customized support:OEM
warranty:1 Year
Measuring Range:0 to 70 000 kg/h (0 to 2570 lb/min)
Max. Measurement Error:±0.10 %/±0.0005 g/cm
Medium Temperature Range:-50 to +150 °C (-58 to +302 °F)
Max. Process Pressure:PN 40, Class 150, 20K
Wetted Materials:316/316L
Nominal Diameter Range:DN 8 to 50 (3/8 to 2")
Measured Variables:Mass flow, density, temperature, volume flow, corrected volume flow
Ambient Temperature Range:-40 to +60 °C, Option:-50 to +60 °C
Degree Of Protection:IP66/67, type 4X enclosure
Power Supply:AC 100 to 230 V / DC 24 V
