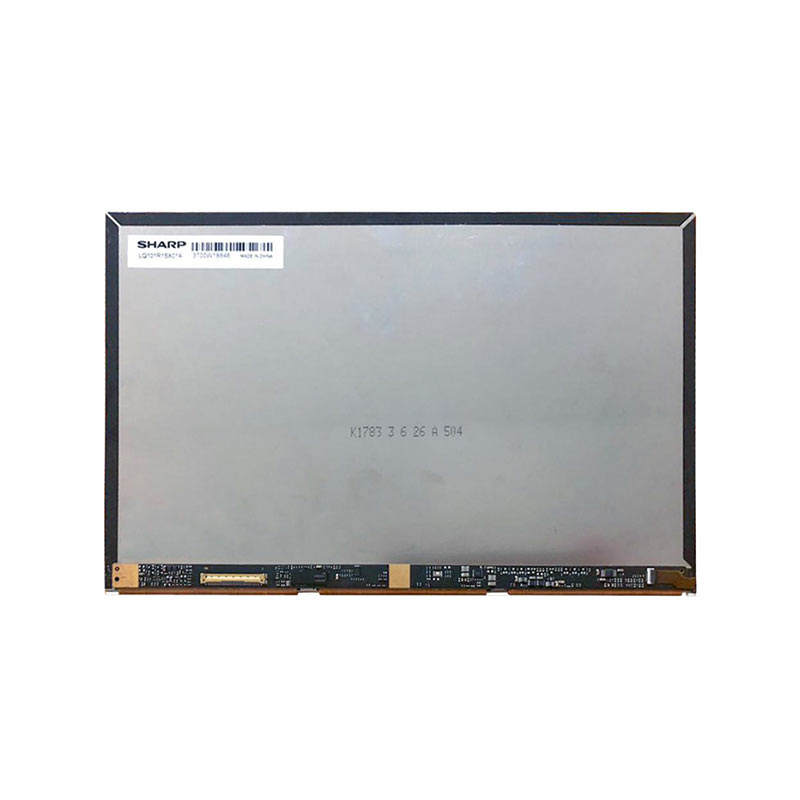

10.1 Inch LQ101R1SX01A TFT LCD Display 2560x1600 MIPI LCD Module With Driver Board For Medical Equipments
Store rating:5.0
(78 reviews)

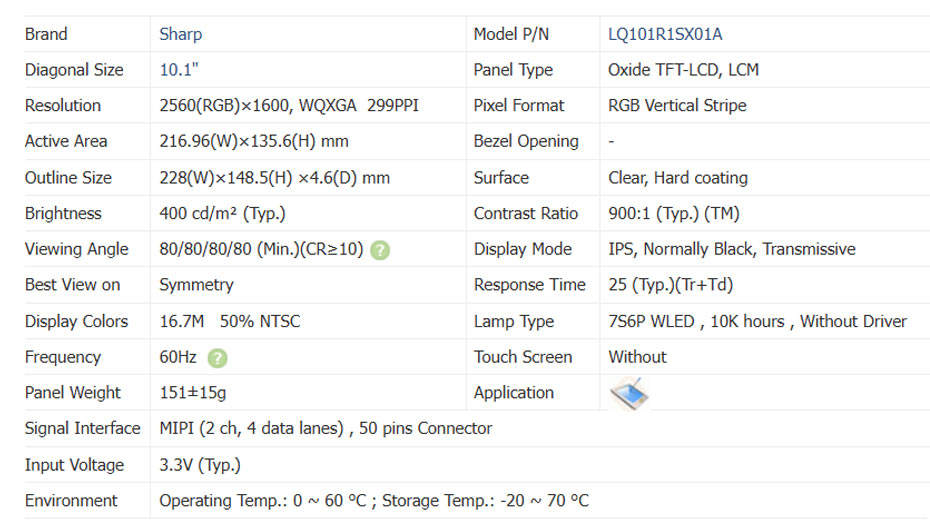

Attributes
AMOLEDType
ChinaPlace of Origin
2560x1600Resolution
IPS,TransmissiveWork Mode
80/80/80/80 (Min.)Viewing Angle
900:1Contrast Ratio
Signal Type:MIPI (2 ch,4 data lanes)
Brightness:400cd/m²(Typ.)

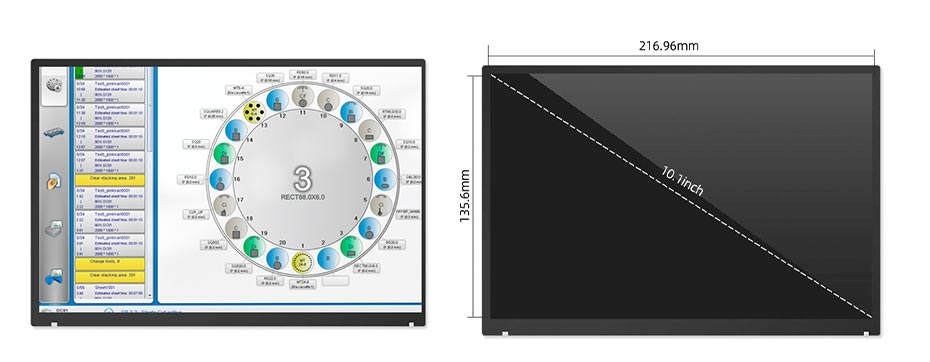

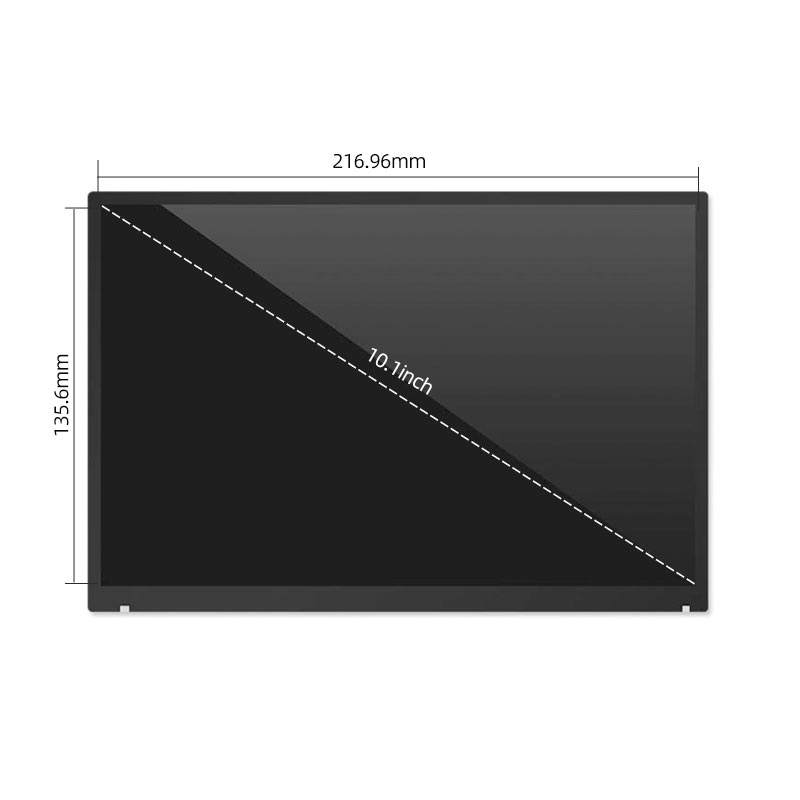

Active Area:216.96x135.6mm
Outline Dimension:228x148.5mm
Operating Temperature:0~60°C
Storage Temperature:-20~70°C
Key attributes
Type
AMOLED
Place of Origin
China
Resolution
2560x1600
Work Mode
IPS,Transmissive
Viewing Angle
80/80/80/80 (Min.)
Contrast Ratio
900:1
Signal Type
MIPI (2 ch,4 data lanes)
Brightness
400cd/m²(Typ.)
Active Area
216.96x135.6mm
Outline Dimension
228x148.5mm
Operating Temperature
0~60°C
Storage Temperature
-20~70°C
Packaging and delivery
Selling Units
Single item
Lead time
Customization options
Customized logo(+ from /Min. order: 10 pieces)
Customized packaging(+ from /Min. order: 10 pieces)
Graphic customization(+ from /Min. order: 10 pieces)
View details
Product descriptions from the supplier
Customizable
Minimum order quantity: 1 piece
$5-10
Variations
Select now型号
LQ101R1SX01A
Customization options
Customized logo (Min. order: 10 pieces)
Customized packaging (Min. order: 10 pieces)
Graphic customization (Min. order: 10 pieces)
Shipping
Shipping fee and delivery date to be negotiated. Chat with supplier now for more details.
