Attributes
220VAC Voltage
Three-PhasePhase
750wRated Power
2500rpmRated Speed
110ST-M04030+T3L-L30F-RABFModel Number
HLTNCBrand Name
Place of Origin:Zhejiang, China
Motor Mounting Type:Flange
Warranty:Other
Efficiency:IE 1
Frame:80mm
Frequency:50/60Hz
Protect Feature:Drip-proof
Type:Servo Motor

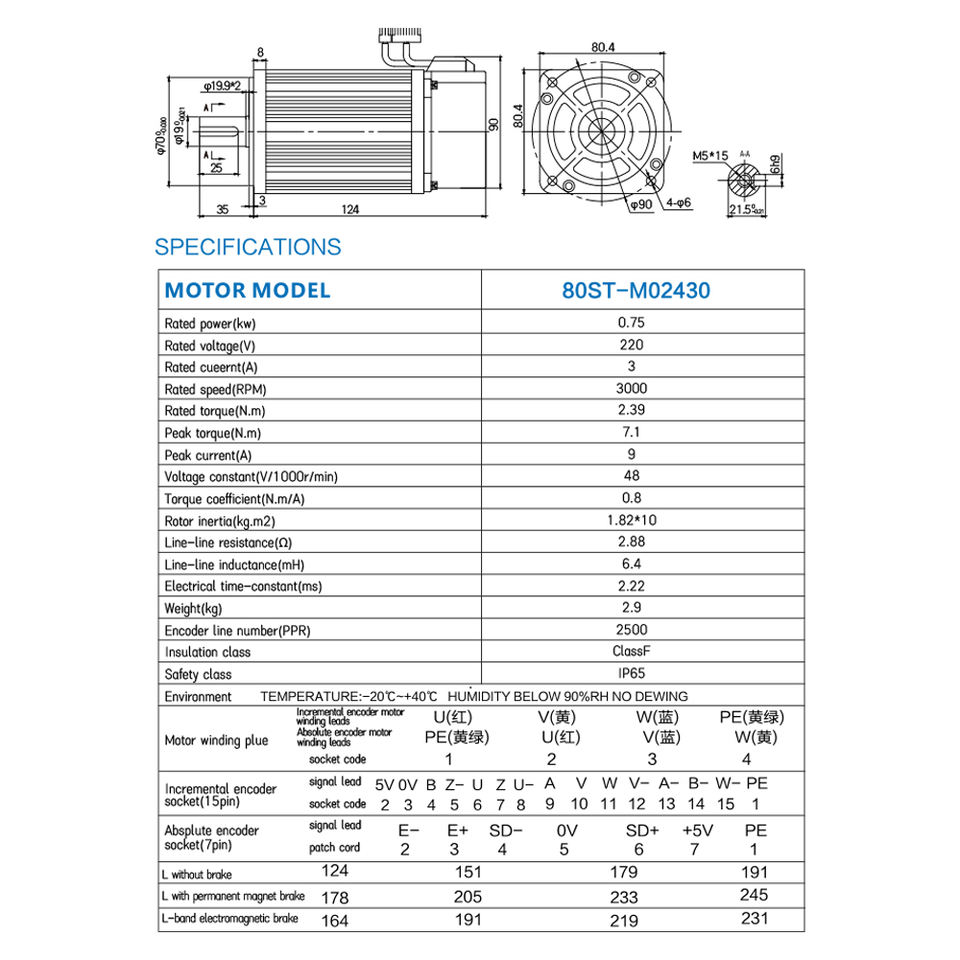

Product Name:80ST-M02430 Servo Motor(Optional with brakes)
Rated Power:750W
Rated Voltage:220V
Peak torque(N.m):7.1
Rated current(A):3
Rated speed(rpm):3000
Rotor inertia(Kg.m²):1.82*10
Rated torque(N.m):2.39Nm
Encoder line number(PPR):2500
Weight(Kg):2.9
Selling Units:Single item
Single package size:40.0X30.0X25.0 cm
Single gross weight:7.500 kg
